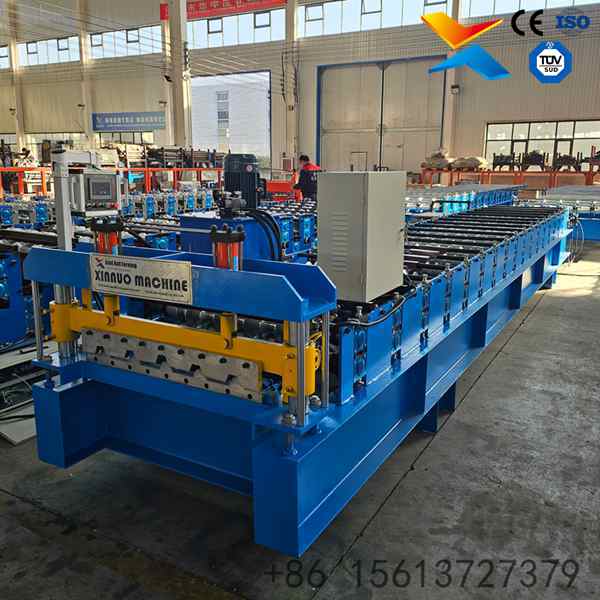

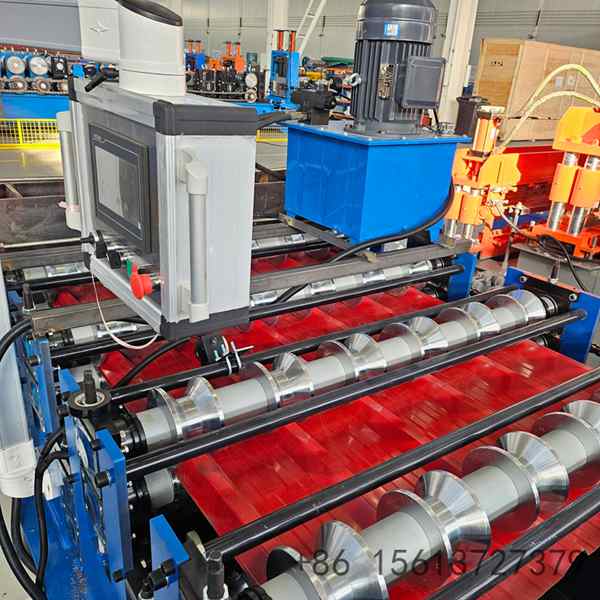

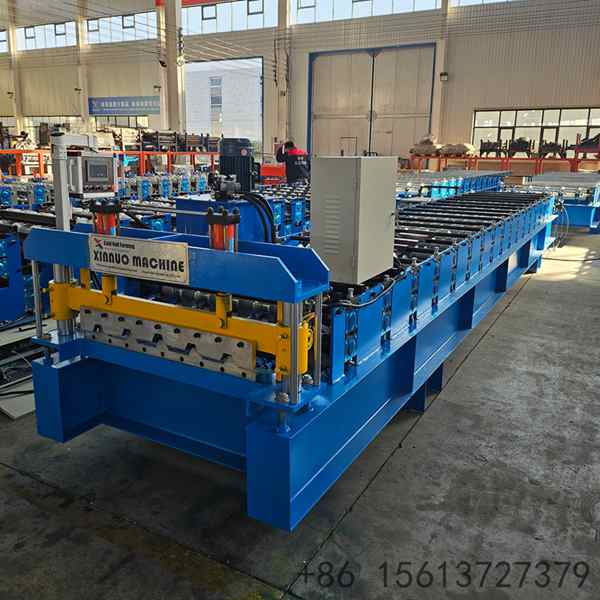

This 5 rib trapezoidal roof sheet roll forming machine is designed for producing 5-rib trapezoidal metal roof panels used in factories, warehouses, workshops, steel structure buildings and residential roofing. The coil is decoiled, fed into the forming section, gradually formed into the required 5-rib trapezoidal profile, then measured and cut by hydraulic cutting. Because 5-rib profiles may vary in rib spacing and effective width, the exact roller layout should be confirmed with customer drawings before production.

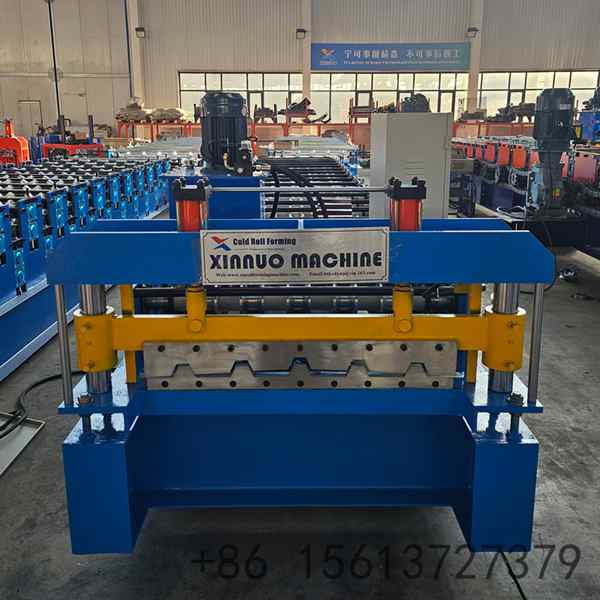

5-rib trapezoidal profile: Produces standard 5-rib trapezoidal roof sheets with uniform rib spacing and clean panel surface.

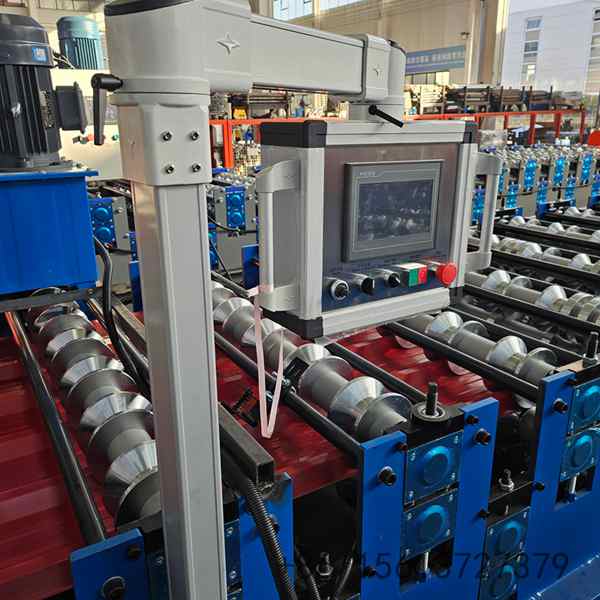

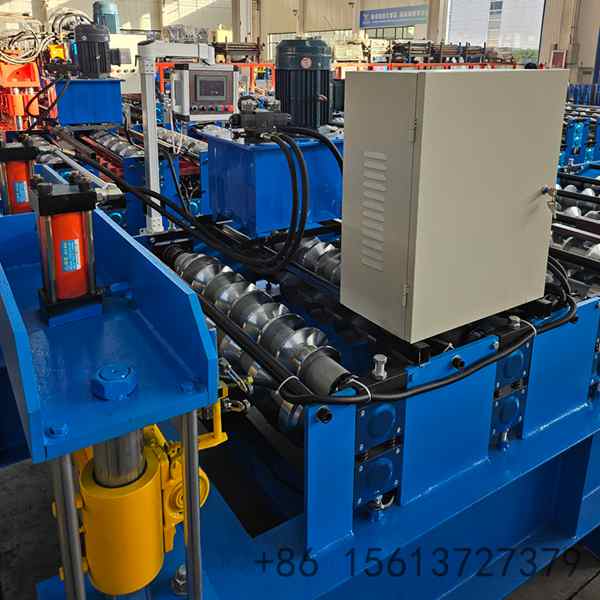

PLC automatic control: Supports length setting, quantity counting, automatic cutting and basic fault prompts, suitable for overseas operators.

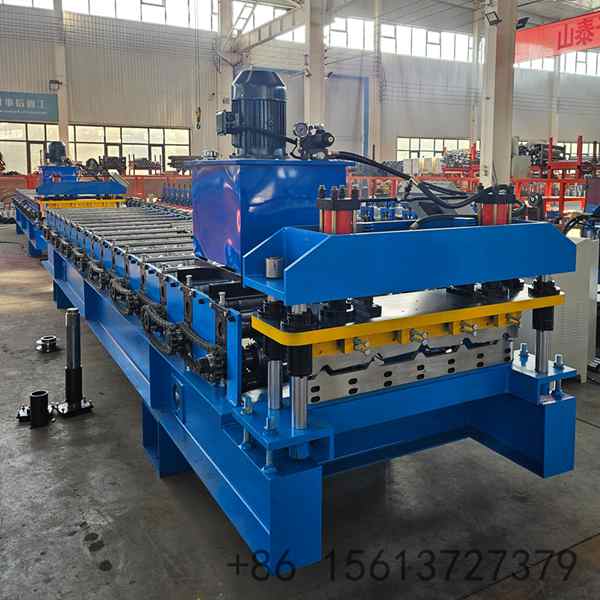

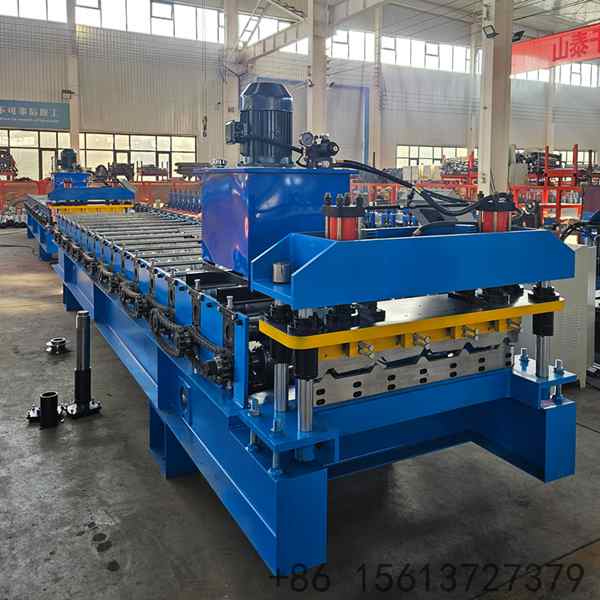

Hydraulic cutting system: Equipped with Cr12 / Cr12MoV blades for clean edges and stable length tolerance.

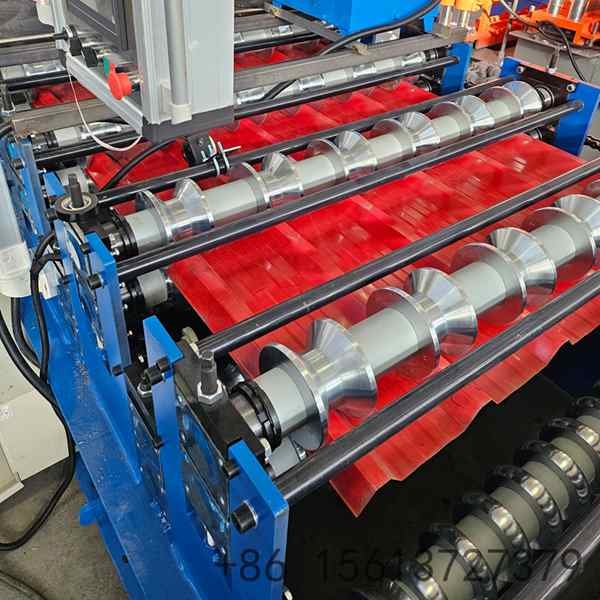

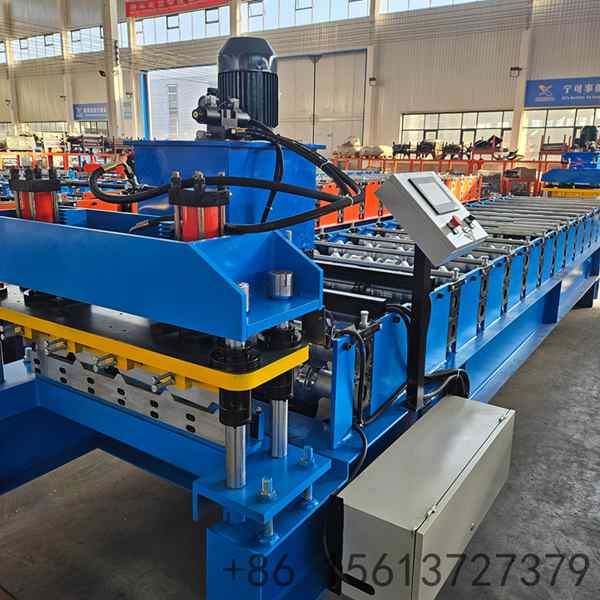

Stable forming structure: Adopts welded H-beam frame and chrome-plated rollers to help keep the panel straight during continuous production.
Customizable width and profile: Feeding width, effective width, rib height and roller stations can be adjusted according to customer drawings.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color Steel / Galvanized Steel / Alu-Zinc Coil |
| 2 | Material Thickness | 0.3 – 0.8 mm, customizable |
| 3 | Feeding Width | 914 – 1250 mm, customizable |
| 4 | Profile Type | 5 Rib Trapezoidal Roof Sheet |
| 5 | Effective Width | Per customer drawing, customizable |
| 6 | Forming Speed | 8 – 15 m/min, depends on configuration |
| 7 | Forming Stations | About 12 – 18 rows, depends on profile |
| 8 | Roller Material | 45# Steel / GCr15, Chrome Plated |
| 9 | Shaft Diameter | φ70 – 76 mm, customizable |
| 10 | Cutting System | Hydraulic Cutting |
| 11 | Blade Material | Cr12 / Cr12MoV |
| 12 | Control System | PLC + HMI Touch Screen |
| 13 | Main Motor Power | 5.5 – 7.5 kW, depends on configuration |
| 14 | Voltage | 380V / 50Hz / 3 Phase, customizable |
| 15 | Machine Weight | Approx. 4 – 7 Tons |
| 16 | Application | Factory, Warehouse, Workshop, Steel Structure Roof |
