Product Description
Product Introduction
Product Description & Parameters

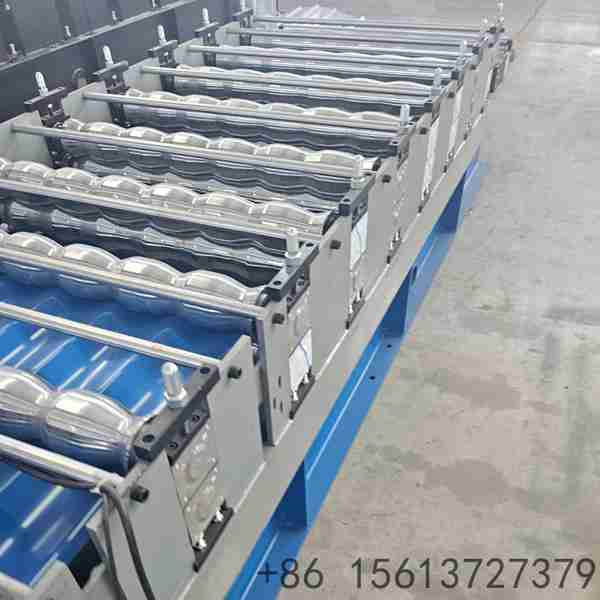

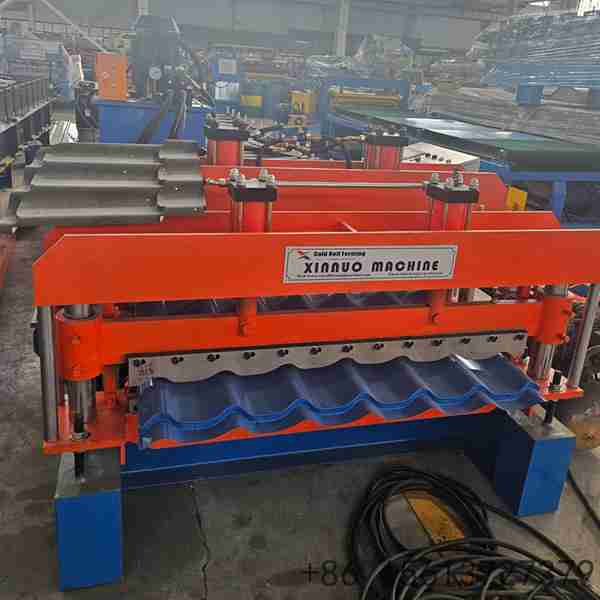

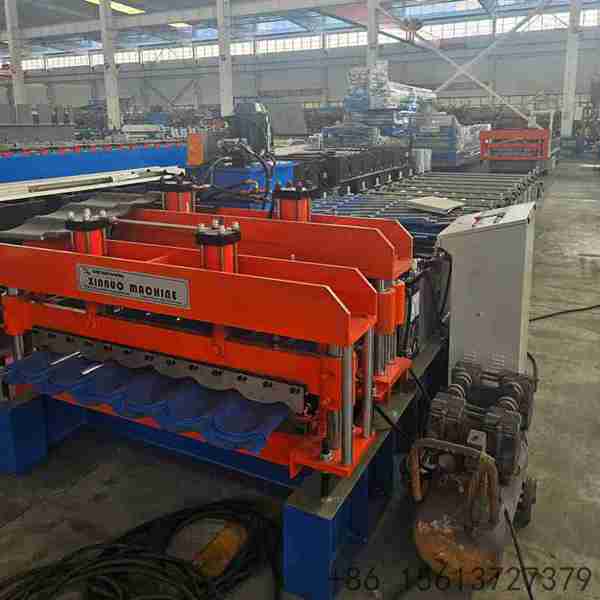

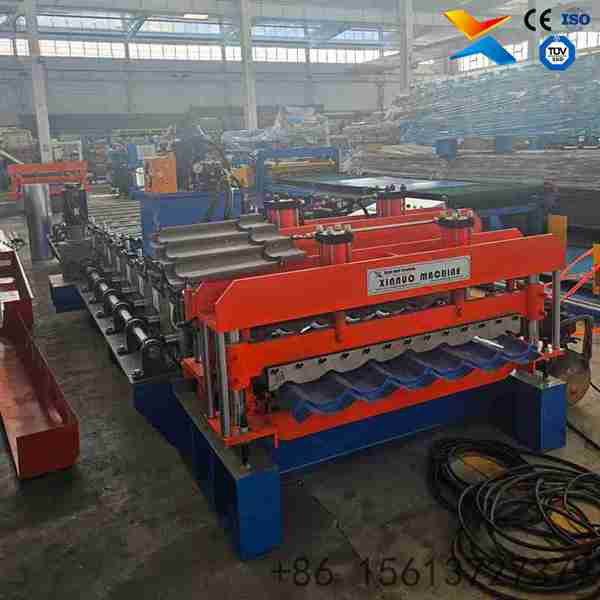

The Single Deck Color Steel Tile Press Machine is a specialized cold roll forming equipment designed for manufacturing high-quality single deck metal roofing tiles widely used in residential buildings, industrial factories, warehouses, and steel structure projects. The single deck tiles produced by this machine feature excellent water drainage, high strength, and beautiful appearance. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
The Single Deck Color Steel Tile Press Machine is a specialized cold roll forming equipment designed for manufacturing high-quality single deck metal roofing tiles widely used in residential buildings, industrial factories, warehouses, and steel structure projects. The single deck tiles produced by this machine feature excellent water drainage, high strength, and beautiful appearance. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / PPGI / Aluzinc / Aluminium coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Forming Speed | 8 - 15 m/min (adjustable via transducer) |

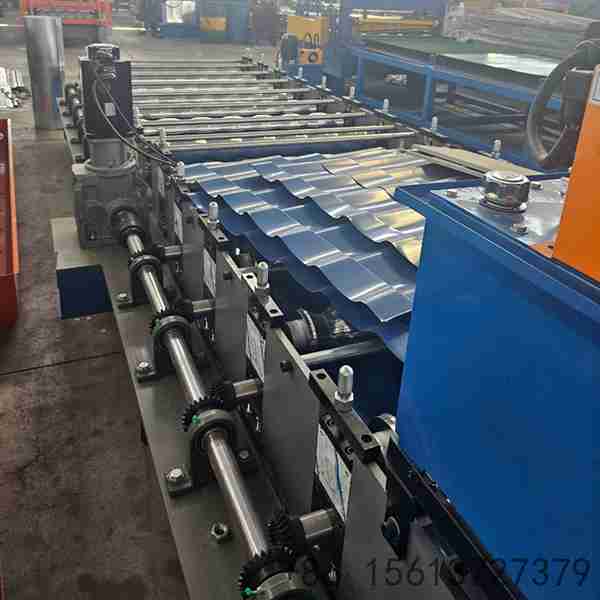

| 5 | Number of Roller Stations | 11 - 13 stations (depending on profile design) |
| 6 | Main Motor Power | 4 - 5.5 kW |

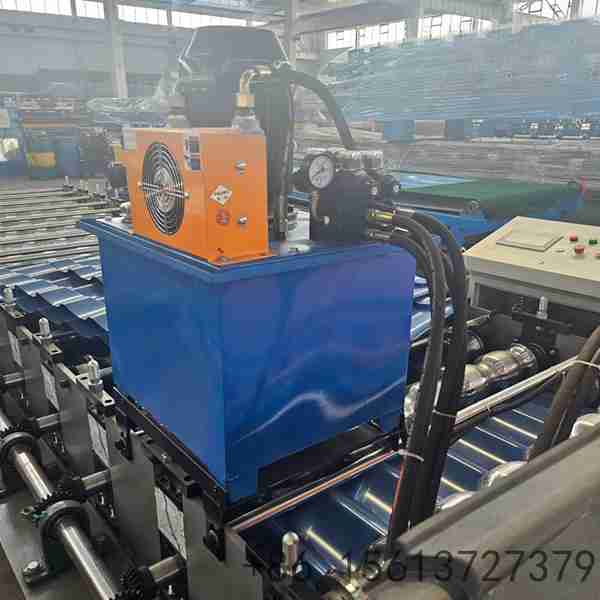

| 7 | Hydraulic Station Power | 3 - 4 kW |

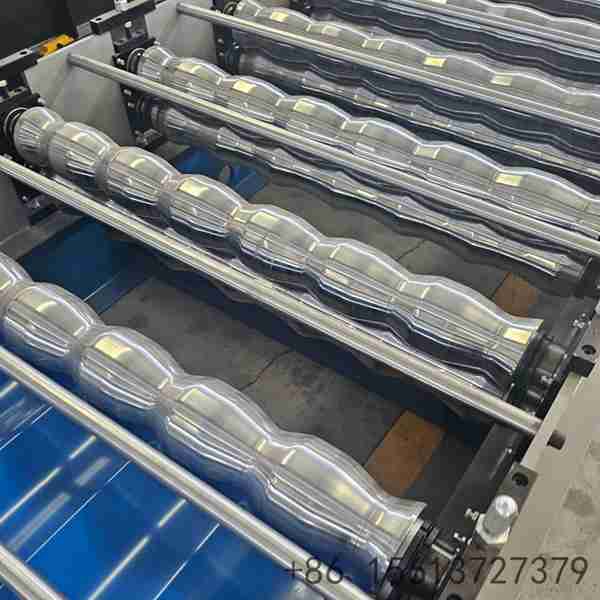

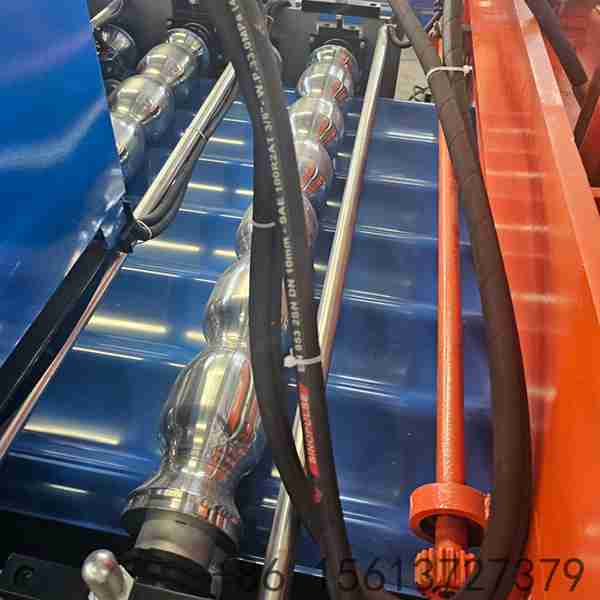

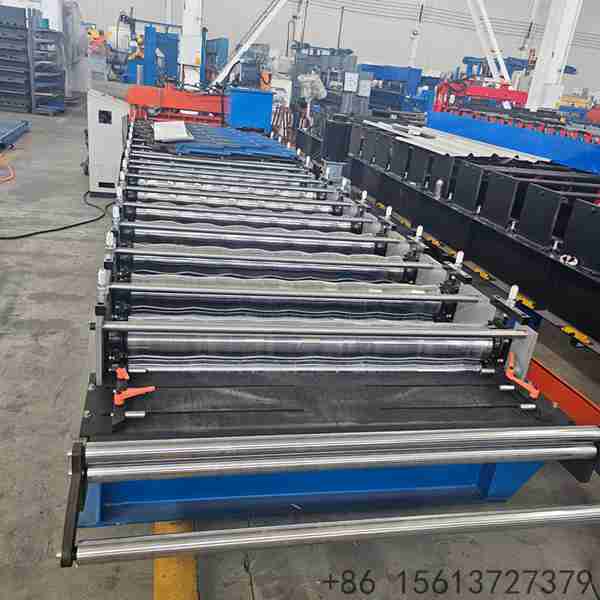

| 8 | Roller Material | High-grade 45# forged steel with hard chrome plating (0.05mm) |
| 9 | Shaft Material | 45# steel, diameter 70-80mm, tempered and polished |
| 10 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |

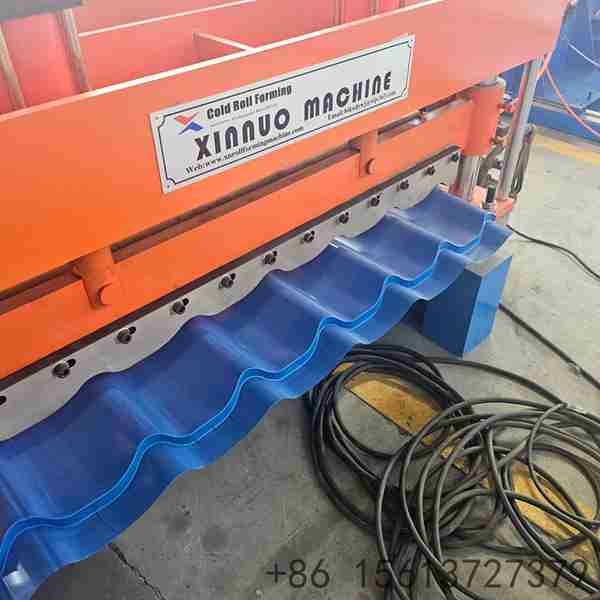

| 11 | Cutting Method | Hydraulic post-cut, automatic pause and cut |

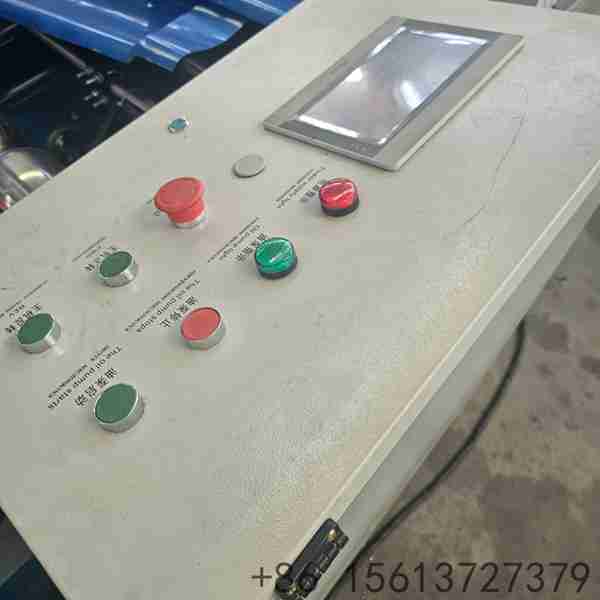

| 12 | Control System | PLC control with touch screen (Mitsubishi / Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 14 | Machine Dimensions | Approx. 6.5m - 7.5m × 1.3m - 1.65m × 1.1m - 1.5m |
| 15 | Machine Weight | Approx. 3.5 - 5 Tons |
| 16 | Length Tolerance | ±1 - 2 mm |

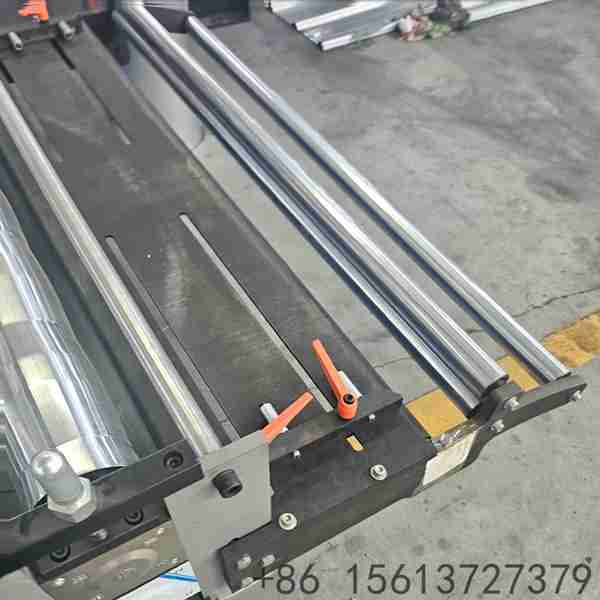

| 17 | Uncoiler Capacity | Up to 3 - 5 tons (manual or hydraulic) |
| 18 | Driving Mode | Chain transmission |
| 19 | Warranty | 1-2 years free warranty + lifelong technical support |
