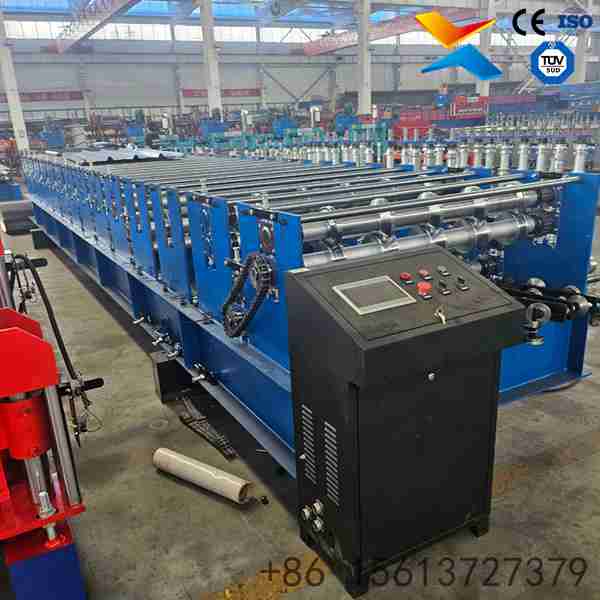

High Speed Double Layer Roll Forming Unit Without Cutting

Product Briefing

Modular Forming Focus: Designed exclusively as a forming unit without a cutting station, ideal for integration into complex or pre-existing production lines.

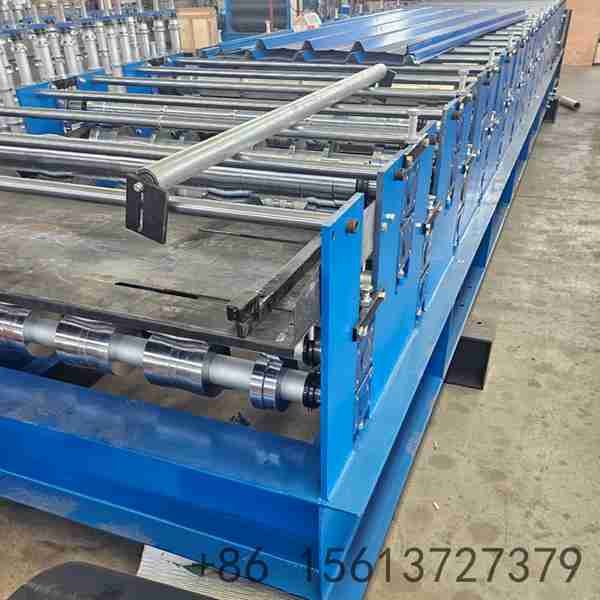

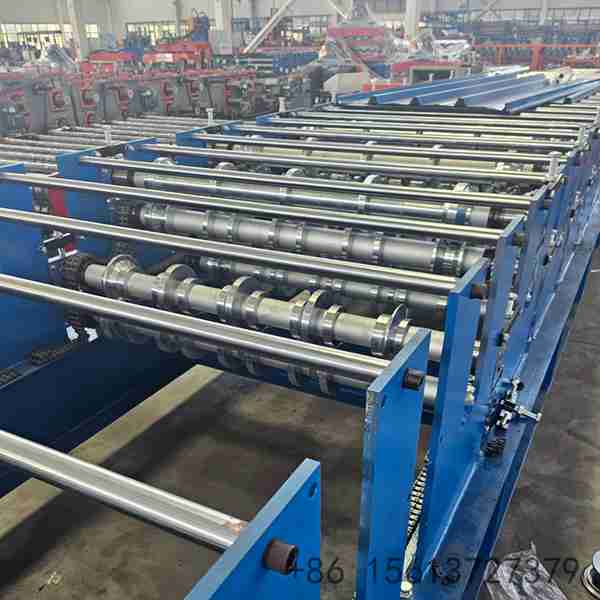

Dual-Profile Capacity: Features two vertically stacked forming layers, allowing for the production of two different metal profiles on a single machine body.

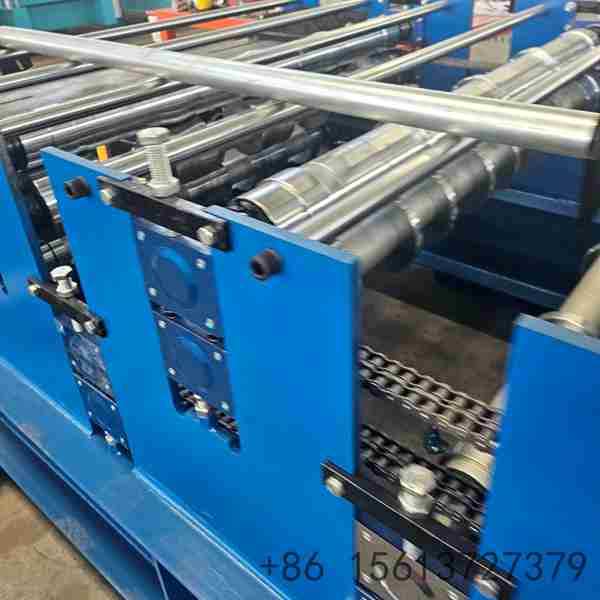

High-End Roller Durability: Rollers are manufactured from premium 45# forged steel, precision-machined, and hard-chrome plated for maximum surface protection.

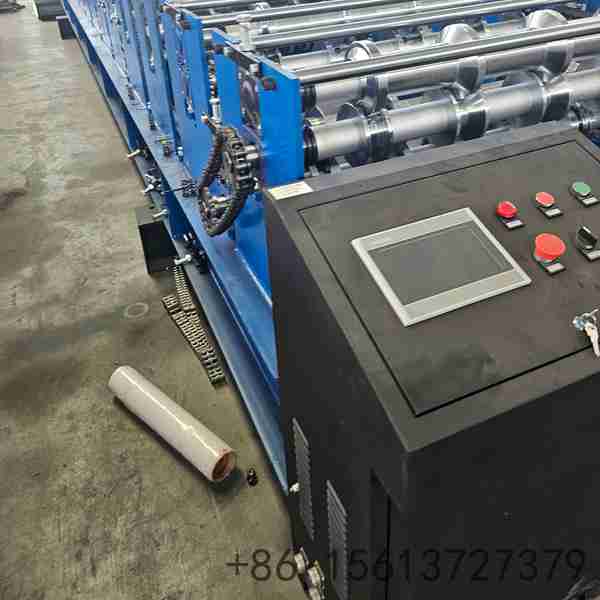

PLC Automation Core: Integrated control system supports seamless synchronization with external cutting and feeding equipment for a fully automated workflow.

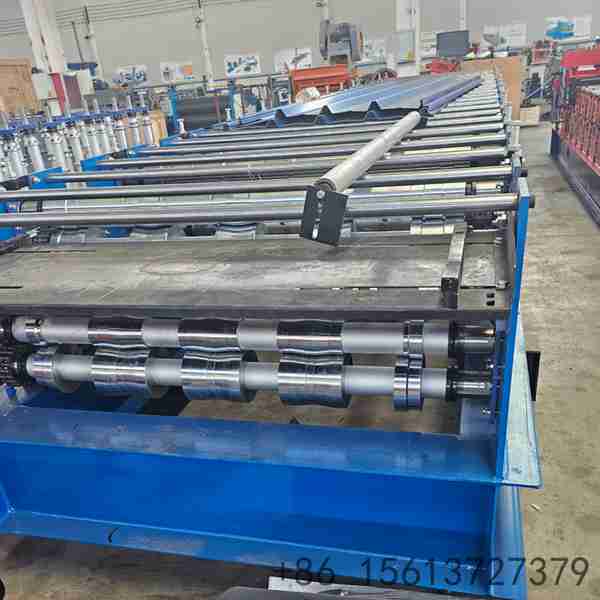

Heavy-Duty Construction: Built on a reinforced H-beam steel frame to eliminate vibration and maintain absolute alignment during high-speed operation.

Detailed Description

Technical Parameters

Unique Technical Advantages

Maximum Integration Flexibility: The absence of an internal cutting unit makes this machine the perfect choice for buyers who already own specialized cutting systems or require non-standard post-processing.

Independent Layer Alignment: Each forming layer is independently calibrated to ensure that both profiles meet strict dimensional tolerances without interfering with the material flow of the other layer.

Precision-Balanced Transmission: The high-torque drive system is engineered to provide consistent power delivery to both layers, ensuring uniform profile depth and pitch across every sheet.

Reduced Operational Footprint: By focusing solely on the forming process, this modular unit offers a shorter machine length, making it easier to install in facilities with limited space.
