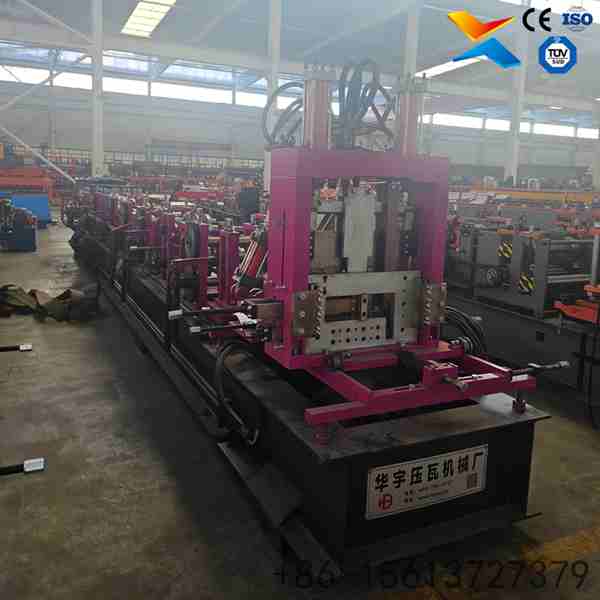

Fully Automatic CZ Purlin Forming Machine
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8615613727379
Product Description
Product Introduction:
Product Description & Parameters:

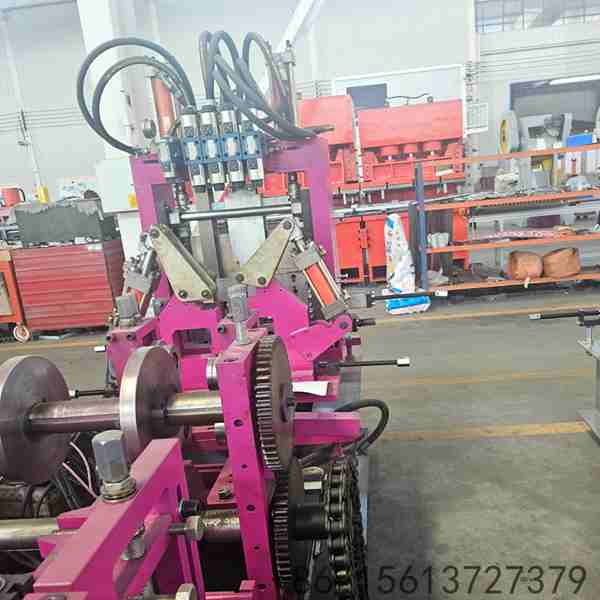

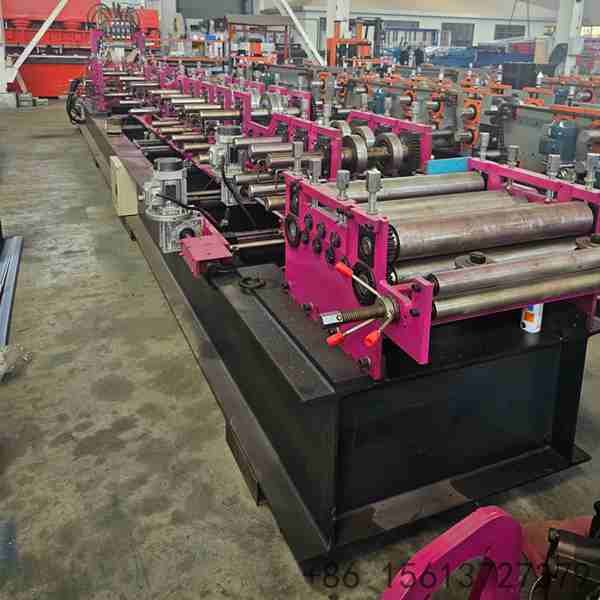

The Fully Automatic CZ Purlin Forming Machine is a state-of-the-art cold roll forming equipment designed to manufacture both C and Z steel purlins on a single production line. Widely used in industrial buildings, warehouses, and steel structure construction, this machine revolutionizes purlin production by eliminating the need for separate C and Z machines. The core advantage lies in its fully automatic interchangeable system, where the operator simply inputs the desired profile and dimensions on the touch screen, and the PLC controls the rollers to adjust automatically. The machine processes galvanized or cold-rolled steel coils through decoiling, leveling, hydraulic punching, roll forming, and automatic cutting. The rollers are manufactured from high-grade 45# forged steel or GCr15 bearing steel with hard chrome plating and heat treatment, ensuring millions of cycles of wear resistance.
The Fully Automatic CZ Purlin Forming Machine is a state-of-the-art cold roll forming equipment designed to manufacture both C and Z steel purlins on a single production line. Widely used in industrial buildings, warehouses, and steel structure construction, this machine revolutionizes purlin production by eliminating the need for separate C and Z machines. The core advantage lies in its fully automatic interchangeable system, where the operator simply inputs the desired profile and dimensions on the touch screen, and the PLC controls the rollers to adjust automatically. The machine processes galvanized or cold-rolled steel coils through decoiling, leveling, hydraulic punching, roll forming, and automatic cutting. The rollers are manufactured from high-grade 45# forged steel or GCr15 bearing steel with hard chrome plating and heat treatment, ensuring millions of cycles of wear resistance.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / Cold-rolled steel / Aluzinc |
| 2 | Material Thickness Range | 1.0 - 3.2 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | C Purlin Width Range | 80 - 300 mm (adjustable) |
| 5 | Z Purlin Width Range | 120 - 300 mm (adjustable) |
| 6 | Forming Speed | 10 - 30 m/min (adjustable via transducer/servo) |

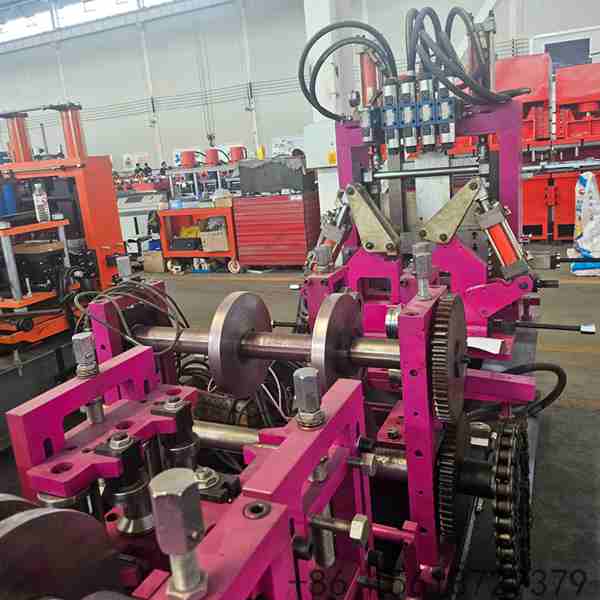

| 7 | Number of Roller Stations | 16 - 20 stations (depending on model) |
| 8 | Main Motor Power | 11 - 22 kW (Hydraulic or Servo drive) |
| 9 | Hydraulic Station Power | 5.5 - 7.5 kW |
| 10 | Roller Material | 45# forged steel / GCr15 with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 40Cr / 45# steel, diameter 75-100mm, tempered and polished |
| 12 | Punching System | Multi-station hydraulic punching (single/dual holes, slots) |
| 13 | Cutting Blade Material | Cr12 / Cr12MoV mould steel with quenching treatment (HRC 58-62) |

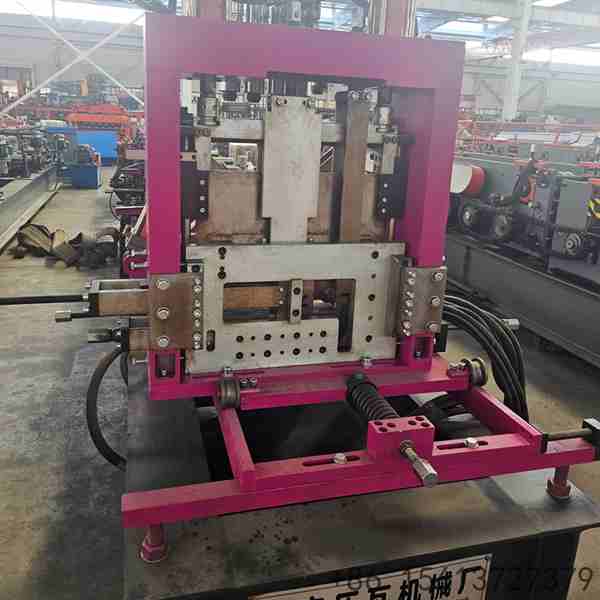

| 14 | Cutting Method | Universal hydraulic post-cut / Pre-cut (no blade change needed) |
| 15 | Control System | PLC control with touch screen (Siemens / Mitsubishi / Delta) |
| 16 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 17 | Machine Dimensions | Approx. 10m - 14m × 1.5m - 2.0m × 1.5m - 1.8m |
| 18 | Machine Weight | Approx. 8 - 14 Tons |
| 19 | Length Tolerance | ±1 - 2 mm |
| 20 | Warranty | 12-24 months free warranty + lifelong technical support |
