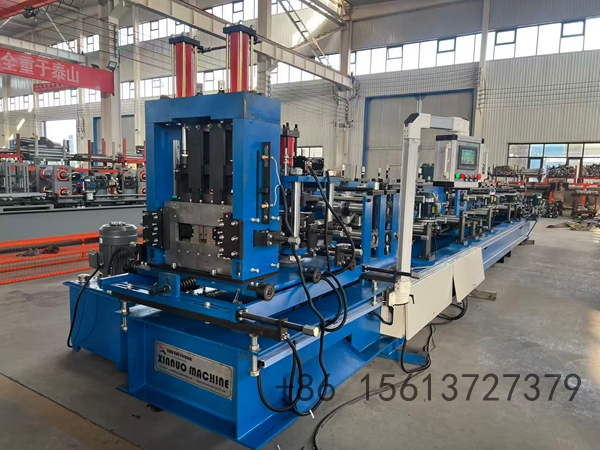

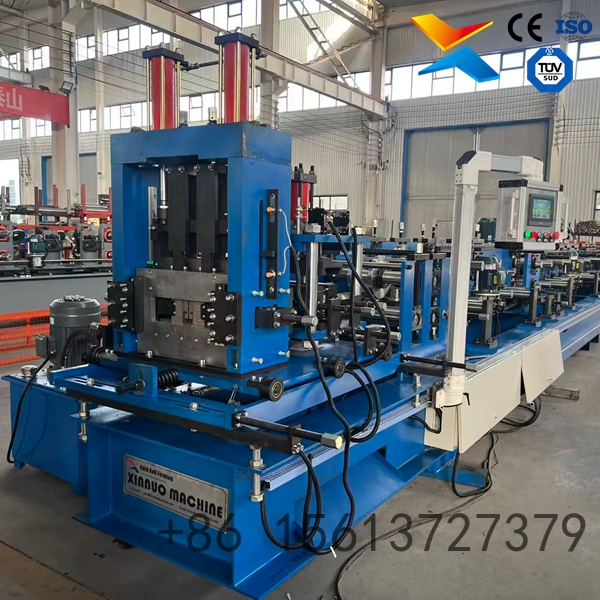

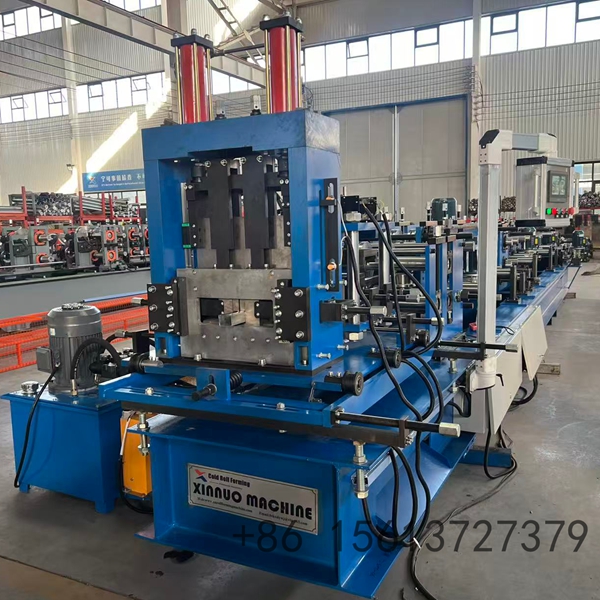

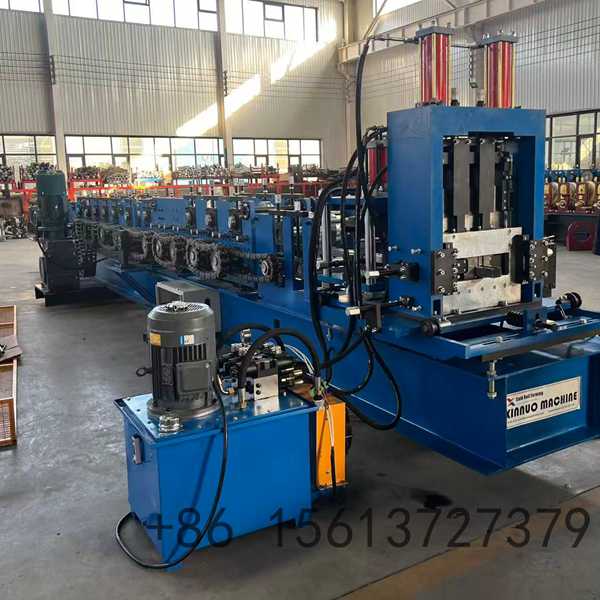

Automatic C Purlin Roll Forming Machine
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8618613727379
Product Description
Product Introduction:
Product Description & Parameters:

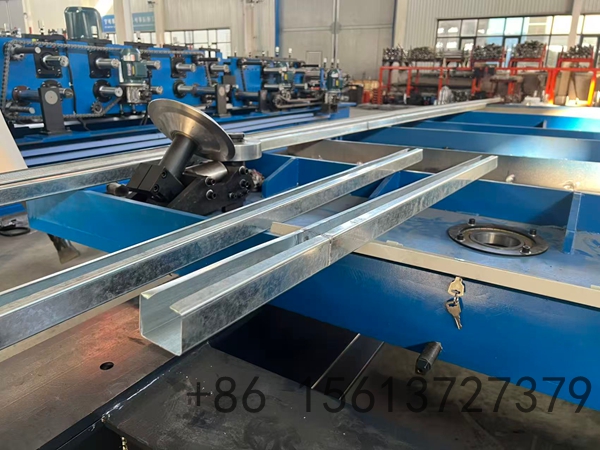

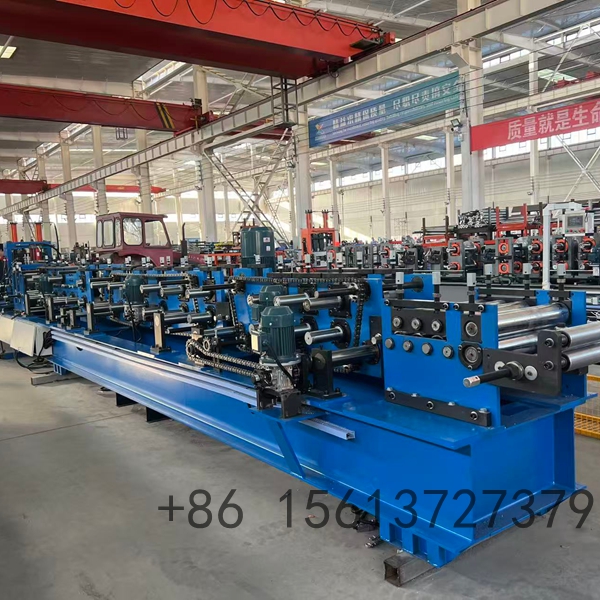

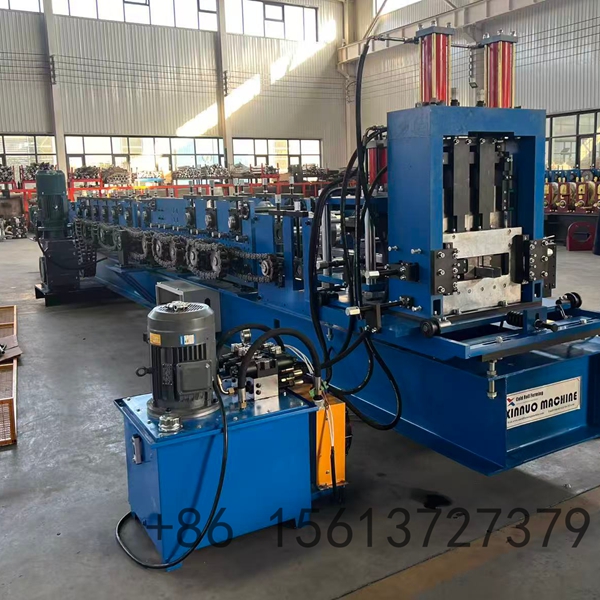

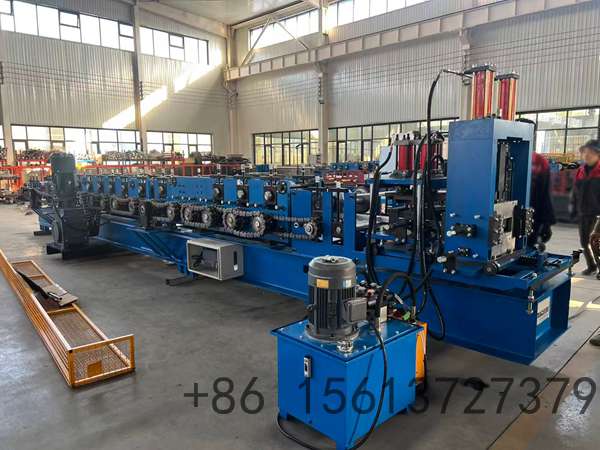

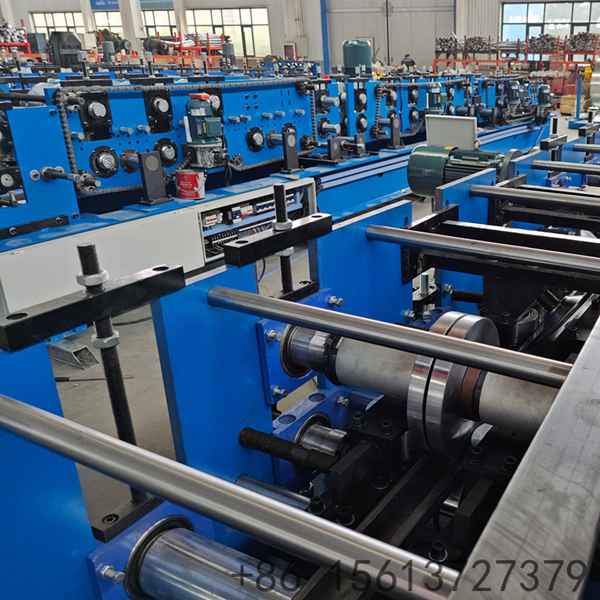

The Automatic C Purlin Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality C-shaped steel purlins widely used in industrial factories, warehouses, steel structure buildings, and civil construction projects. The C purlins produced by this machine serve as essential structural support components with excellent load-bearing capacity and easy installation. The machine integrates decoiling, guiding, leveling, hydraulic punching, roll forming, length measuring, and automatic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel or GCr15 bearing steel with hard chrome plating (0.05mm) and heat treatment, ensuring long service life and smooth purlin surfaces.
The Automatic C Purlin Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality C-shaped steel purlins widely used in industrial factories, warehouses, steel structure buildings, and civil construction projects. The C purlins produced by this machine serve as essential structural support components with excellent load-bearing capacity and easy installation. The machine integrates decoiling, guiding, leveling, hydraulic punching, roll forming, length measuring, and automatic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel or GCr15 bearing steel with hard chrome plating (0.05mm) and heat treatment, ensuring long service life and smooth purlin surfaces.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel coil / PPGI / Cold-rolled steel / Aluzinc |
| 2 | Material Thickness Range | 1.0 - 3.2 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |

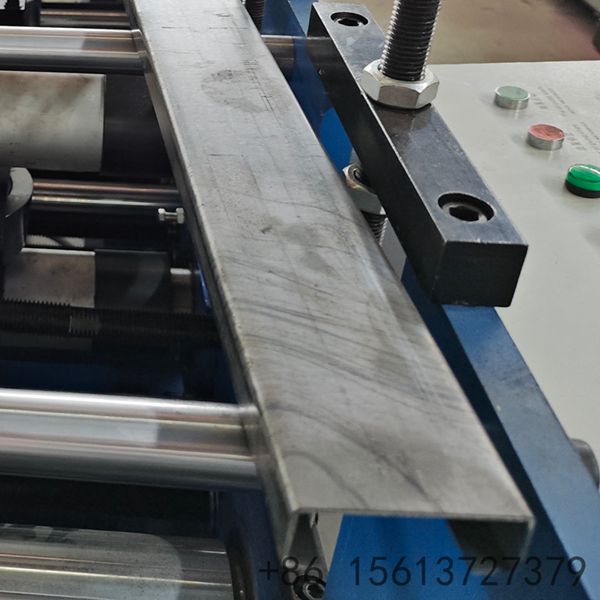

| 4 | C Purlin Width Range | 80 - 300 mm (adjustable) |
| 5 | Flange Height Range | 30 - 80 mm (adjustable) |
| 6 | Forming Speed | 10 - 25 m/min (adjustable via transducer) |

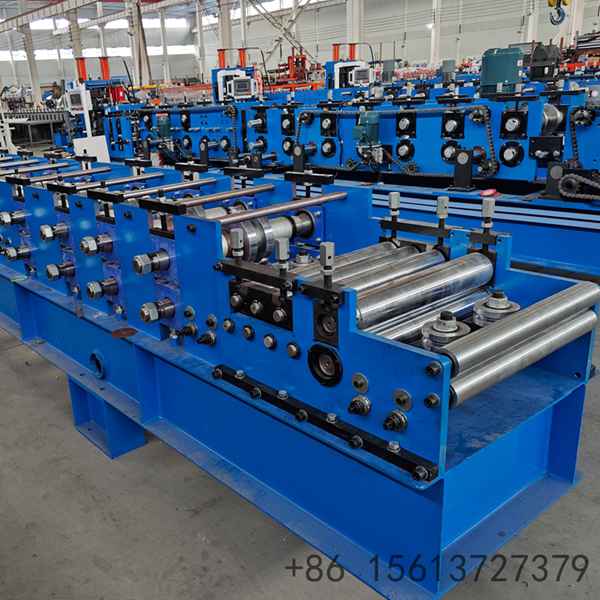

| 7 | Number of Roller Stations | 12 - 20 stations (depending on model) |
| 8 | Main Motor Power | 11 - 22 kW |
| 9 | Hydraulic Station Power | 5.5 - 7.5 kW |
| 10 | Roller Material | 45# forged steel / GCr15 with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 45# / 40Cr steel, diameter 75-100mm, tempered and polished |
| 12 | Punching System | Hydraulic punching (single/dual holes, customizable) |
| 13 | Cutting Blade Material | Cr12 / GCr12 mould steel with quenching treatment (HRC 58-62) |

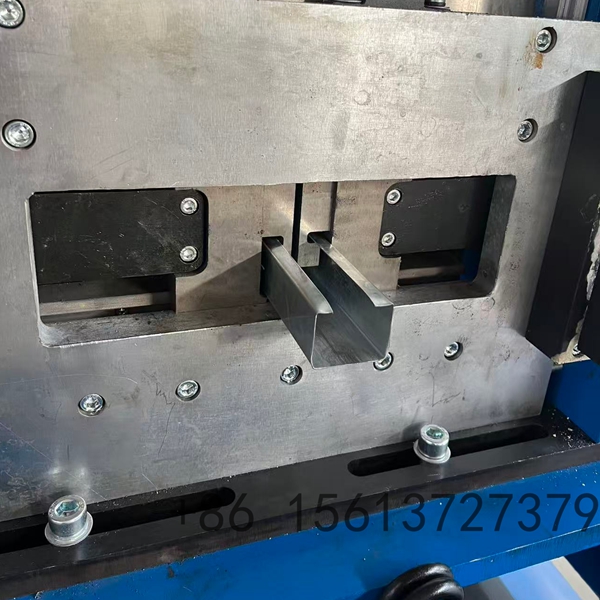

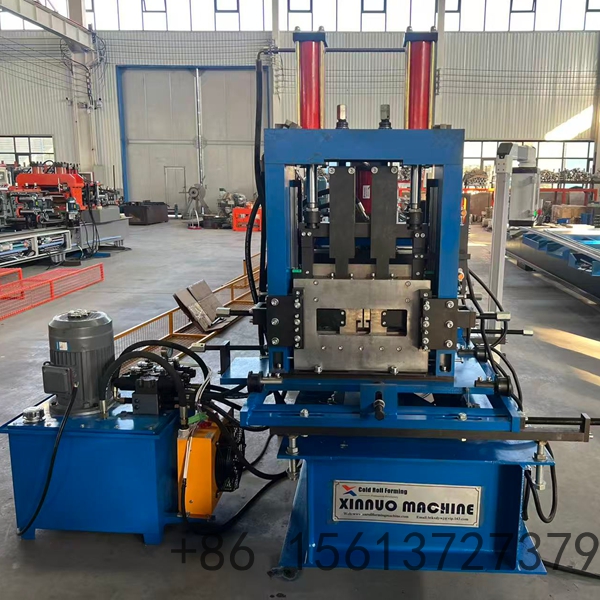

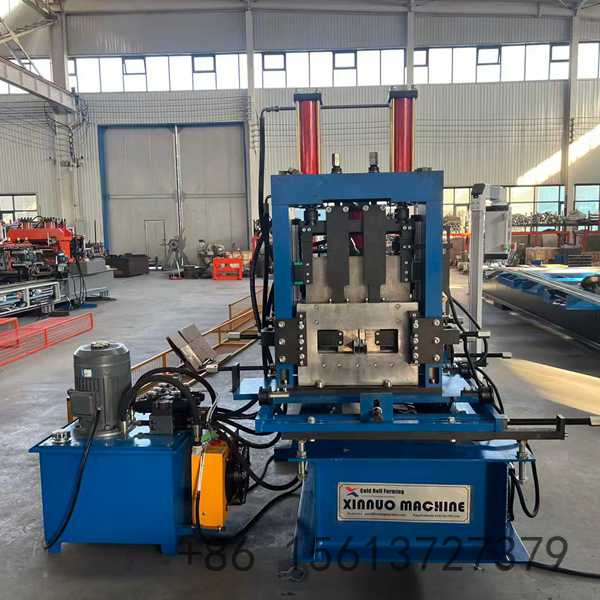

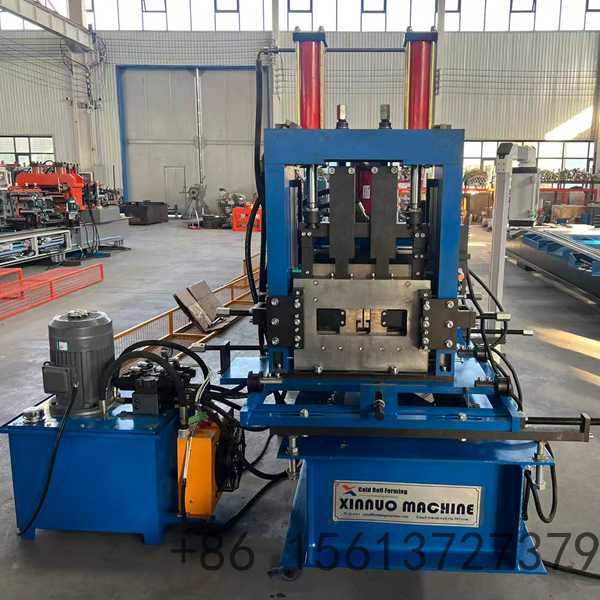

| 14 | Cutting Method | Hydraulic post-cut / Pre-cut, automatic pause and cut |
| 15 | Control System | PLC control with touch screen (Siemens / Mitsubishi / Delta) |
| 16 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 17 | Machine Dimensions | Approx. 8m - 12m × 1.0m - 1.8m × 1.3m - 1.7m |
| 18 | Machine Weight | Approx. 6 - 12 Tons |
| 19 | Length Tolerance | ±1 - 2 mm |
| 20 | Uncoiler Capacity | Up to 3 - 5 tons (manual or hydraulic) |
| 21 | Driving Mode | Chain transmission |
| 22 | Warranty | 12-24 months free warranty + lifelong technical support |
