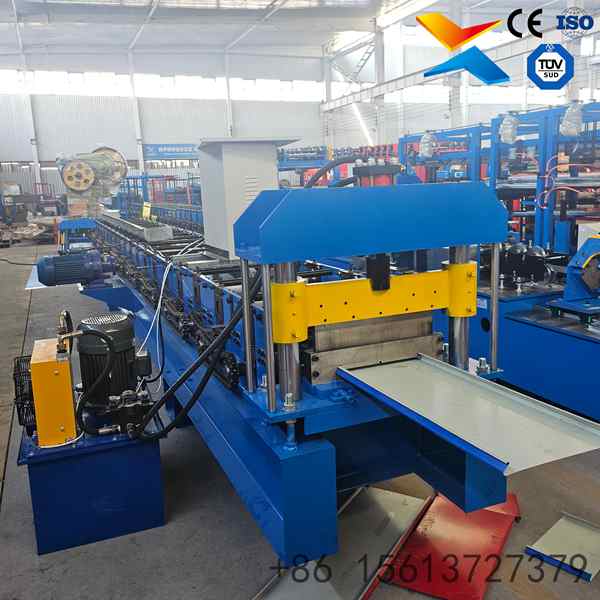

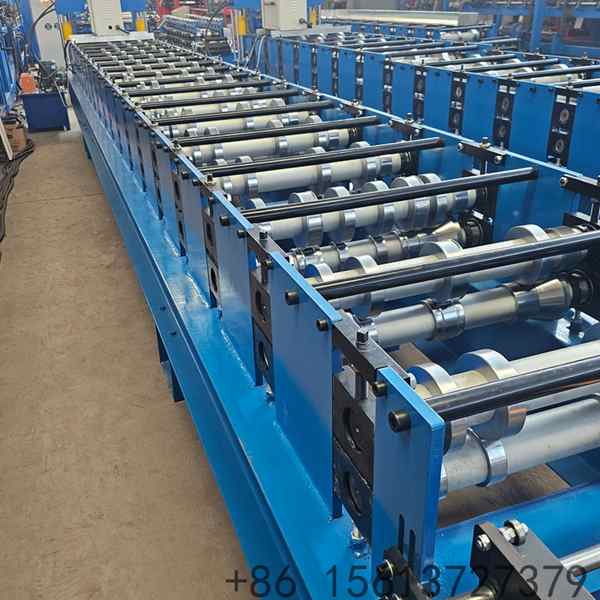

Wall Cladding Roll Forming Machine

Product Attributes :

Metal Siding Wall Hanging Panel is produced from color steel or galvanized coil by roll forming, with interlocking or overlapping edges for easy installation. Suitable for exterior walls, factory facades, warehouses and prefabricated buildings.

Product Description

Product Introduction:

Open profile forming: Suitable for channel-type and other open-section profiles, with roller stations designed according to customer cross-section drawings.

Integrated punching and cutting: The four-column hydraulic station can be configured for punching, end forming or cutting, improving accuracy of hole positions and length tolerance.

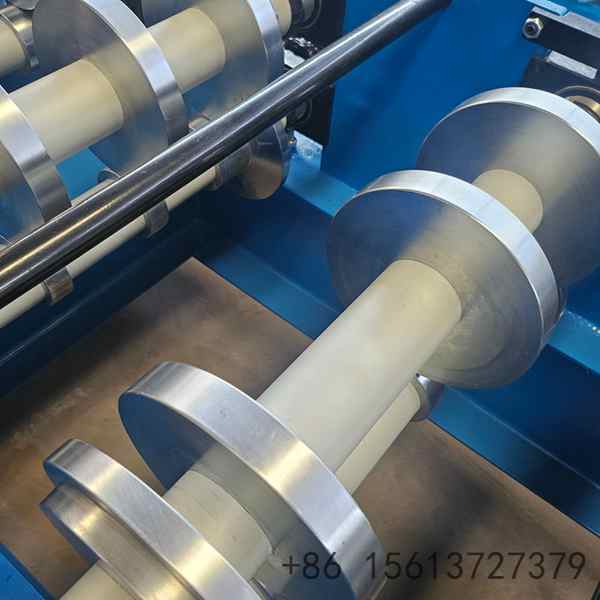

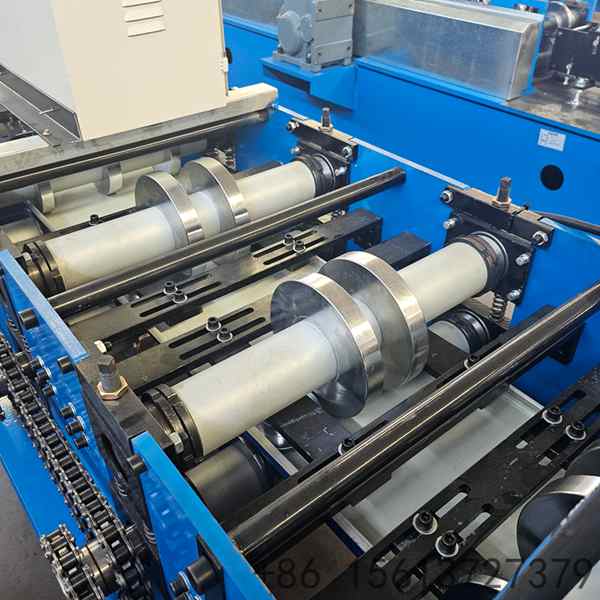

Stable forming structure: Adopts welded frame with chrome-plated rollers and forged shafts, helping keep the profile straight during continuous production.

PLC automatic control: Supports length setting, quantity counting, cutting control and basic fault prompts, suitable for overseas operators.

Customizable configuration: Material thickness, feeding width, roller stations, shaft diameter and motor power can be adjusted according to project requirements.

Product Description & Parameters:

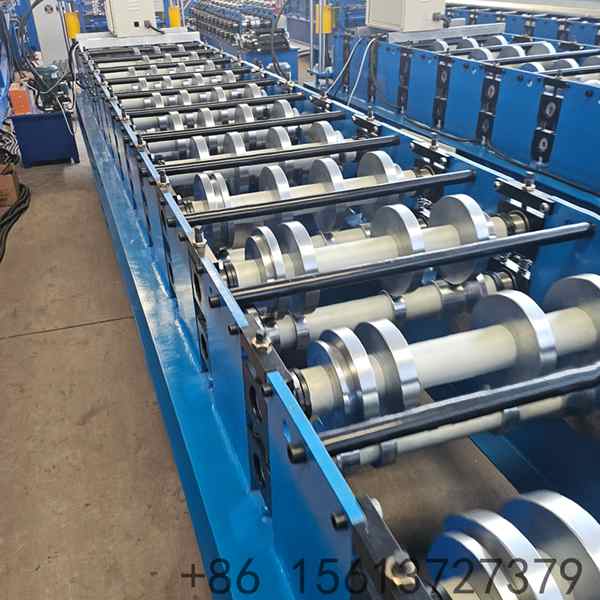

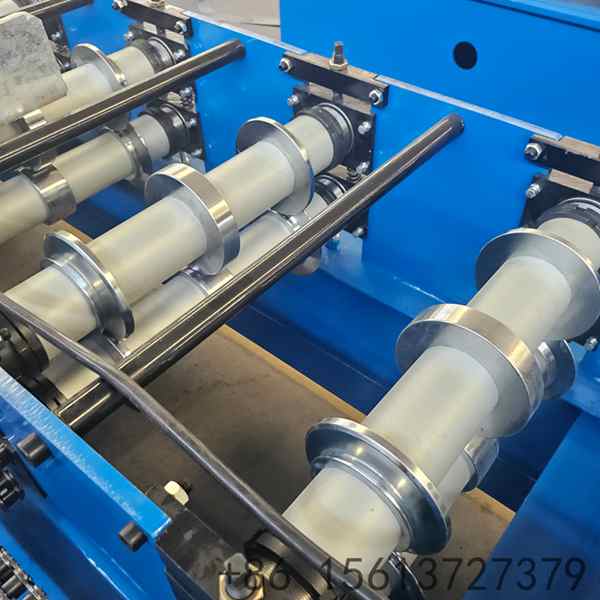

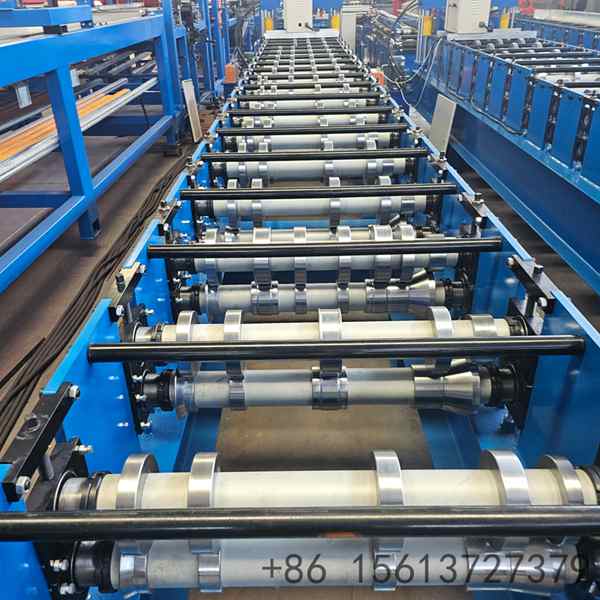

This channel steel open profile roll forming machine is designed for producing channel-type and similar open-section profiles used in steel structure buildings, support frames, brackets and industrial applications. The coil is decoiled, leveled, then formed through multiple roller stations into the required open-section profile, followed by hydraulic punching and hydraulic cutting to the specified length.

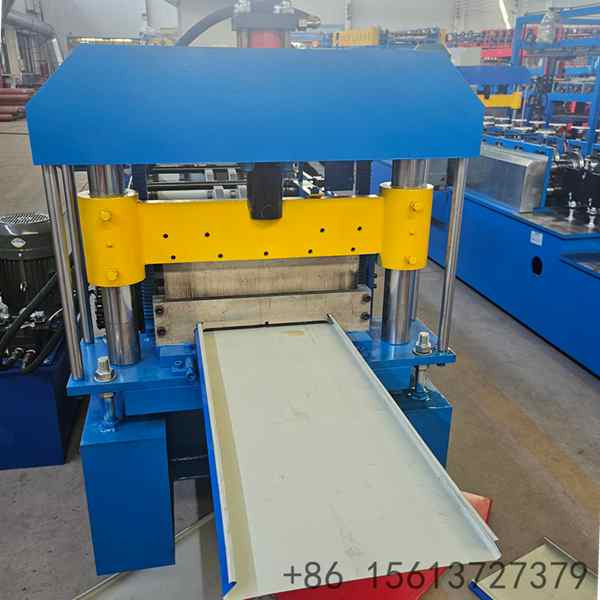

The punching and cutting unit adopts a four-column guide structure to improve alignment between upper and lower dies, reducing offset and improving dimensional consistency. The exact profile shape, number of roller stations and punching layout should be confirmed with customer drawings before production.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized Steel Coil / Color Steel Coil / Q235B
2	Material Thickness	1.5 – 4.0 mm, customizable
3	Feeding Width	150 – 600 mm, customizable
4	Profile Type	Channel Steel / Open Section, customizable
5	Forming Speed	6 – 15 m/min, depends on configuration
6	Forming Stations	About 12 – 20 rows, depends on profile
7	Roller Material	45# Steel / GCr15, Chrome Plated
8	Shaft Diameter	φ70 – 90 mm, customizable
9	Punching System	Four-Column Hydraulic Punching (Optional)
10	Cutting System	Hydraulic Cutting
11	Blade Material	Cr12 / Cr12MoV
12	Control System	PLC + HMI Touch Screen
13	Main Motor Power	7.5 – 15 kW, depends on configuration
14	Hydraulic Station Power	4 – 5.5 kW
15	Voltage	380V / 50Hz / 3 Phase, customizable
16	Machine Weight	Approx. 6 – 12 Tons
17	Application	Steel Structure, Support Frame, Bracket, Industrial Building
