Size Change From Screen: Channel sizes are set on the touchscreen instead of by changing rollers.
Wide Range: Bottom widths 75-300mm, side heights 40-80mm and lips 15-20mm on one machine.
Minutes Not Shifts: A size change takes minutes, so short runs stay profitable.
Repeat Settings: Stored settings keep repeat orders identical.
Steady Drive: A 15KW motor and 2 inch chain carry the forming load.
Stable Frame: The 350H frame and 80mm shafts hold the C section on long runs.
Proven Build: This section range is one of the most commonly produced in the archive.
| Component | Specification |
|---|---|

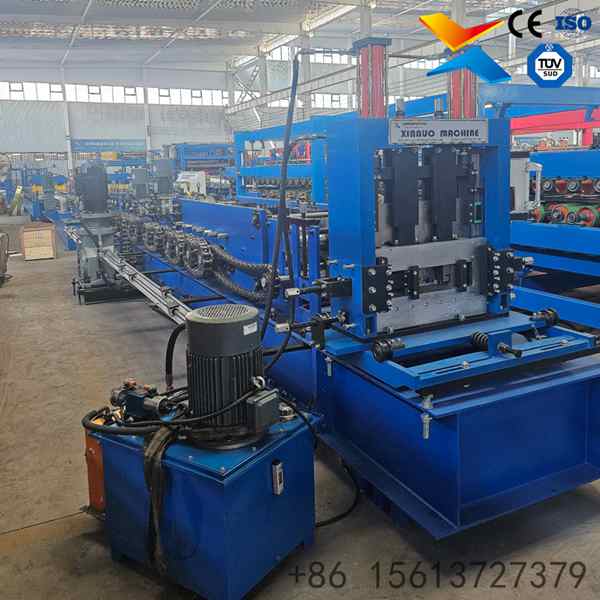

| Machine type | Computer controlled C purlin roll forming machine |
| Model | HY75-300 |
| Section range (W x H x L) | 75-300 x 40-80 x 15-20 mm |
| Forming rows | 12 |
| Frame | 350H |
| Shafts | 80 mm |
| Main motor | 15 KW |
| Chain drive | 2 inch |
| Control | Computer controlled with touchscreen |
| Sheet thickness | [To be confirmed] |
| Middle plate | [To be confirmed] |

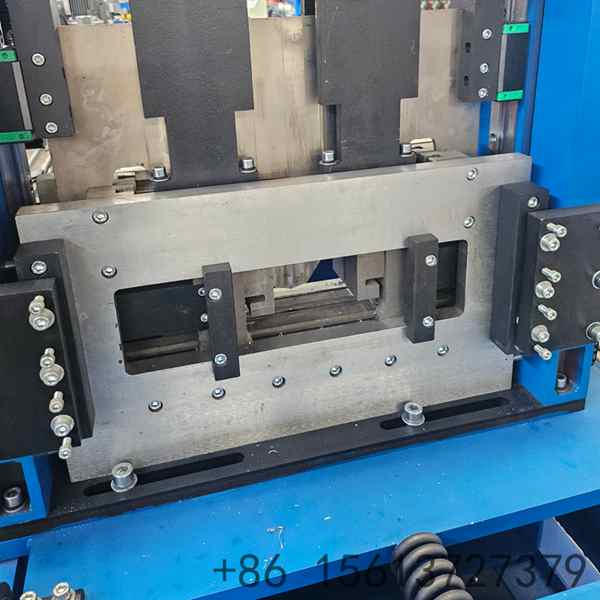

| Cutting | [To be confirmed] |
| Line length | [To be confirmed] |
| Running speed | [To be confirmed] |
Fast Size Change: The control system moves the rollers, so no roller set is swapped by hand.
One Line, Many Sections: 75-300mm bottom width and 40-80mm side height are covered.
Stored Recipes: Each section setting can be saved and called up for repeat orders.
Fewer Operators: One operator can run the line and change sizes from the panel.

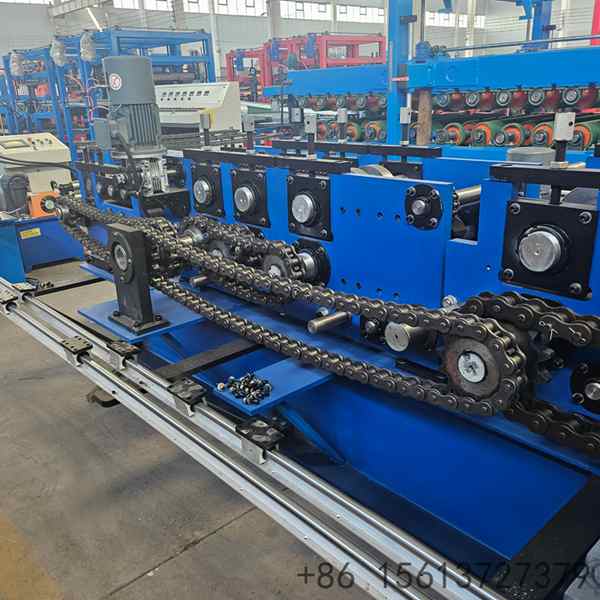

Thick Steel Ready: A 15KW motor with a 2 inch chain handles heavier purlin gauges.

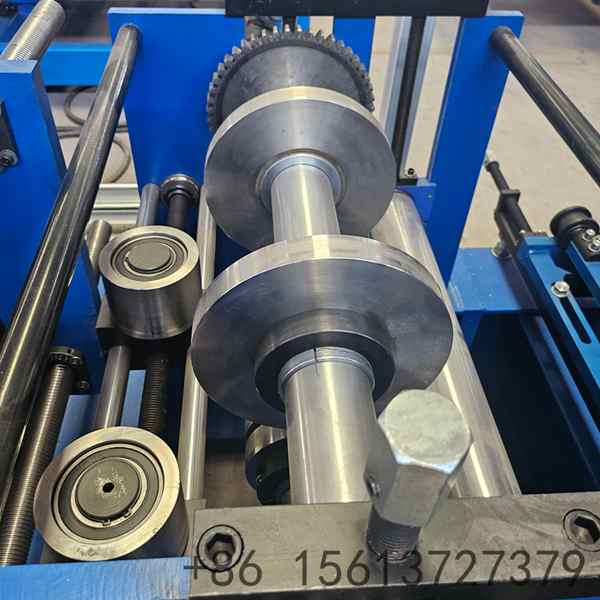

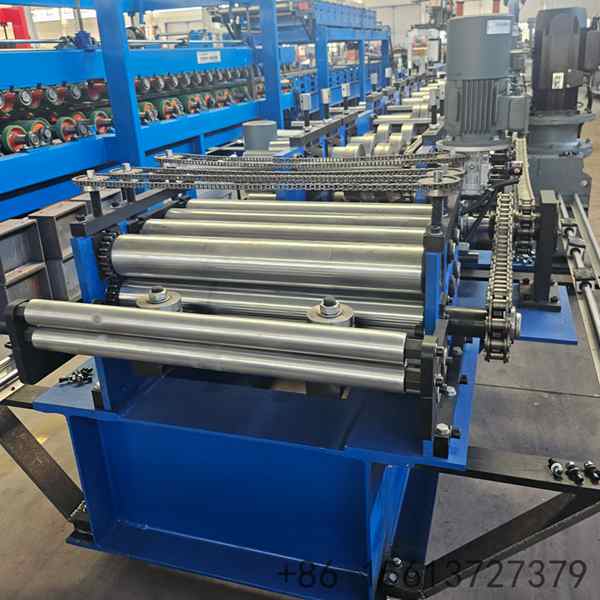

Accurate Lip: 12 stations form the C section and lip without distortion.
Mainstream Range: The 75-300 section range is a common build in the archive.
