Authentic Vintage Aesthetics: Specifically engineered to produce metal roofing tiles that replicate the classic look of traditional antique tiles, featuring consistent wave patterns and perfect interlocking for superior water tightness and structural integrity.

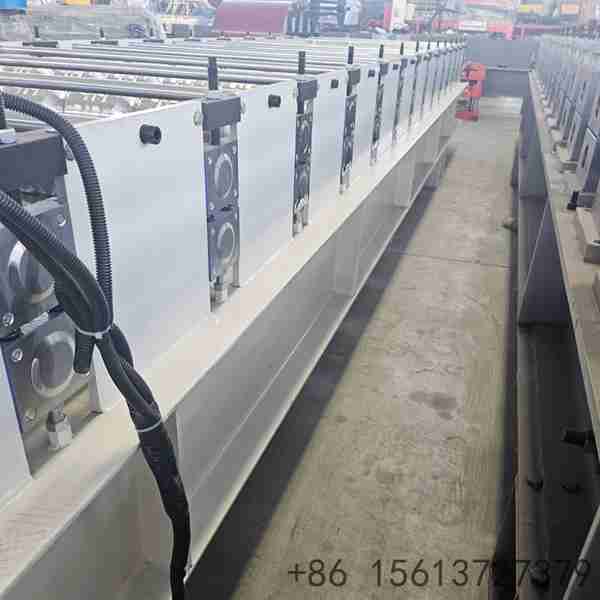

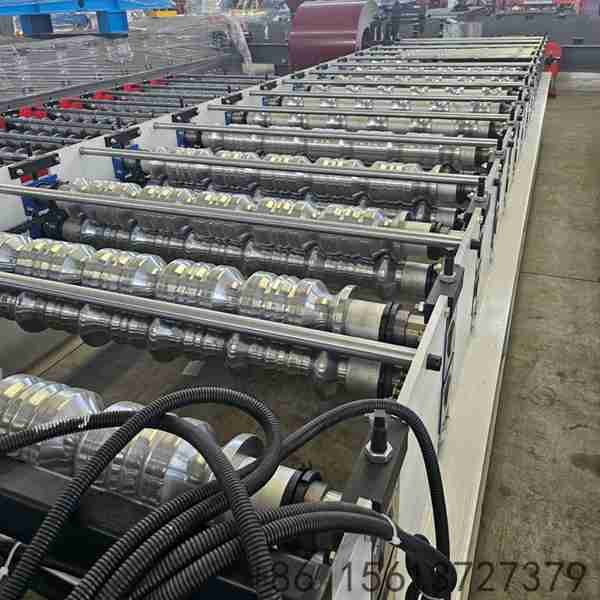

Robust Industrial Construction: Built on a reinforced steel base with thick side plates, designed to absorb continuous forming stresses and maintain strict dimensional tolerances even during high-speed production runs.

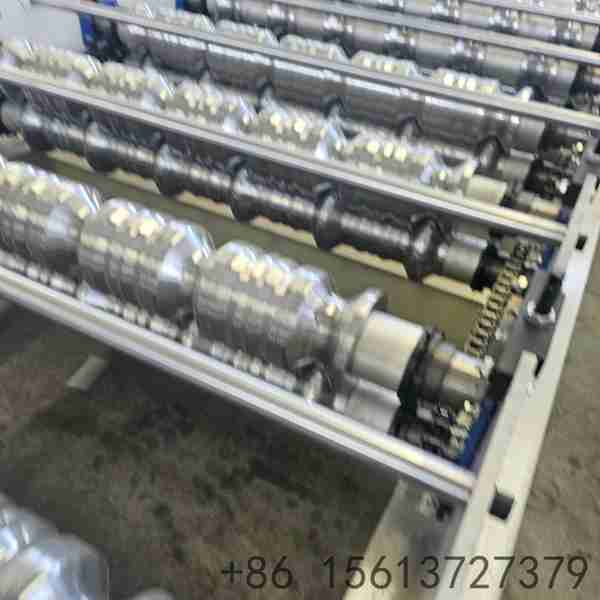

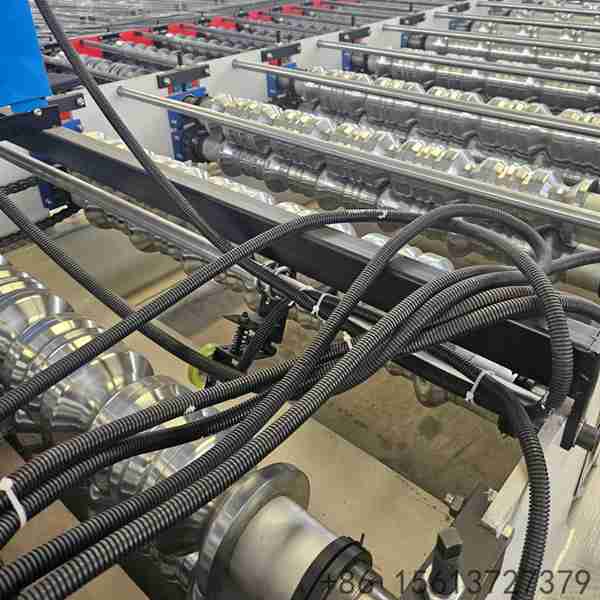

Advanced Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to mold the tile profile, ensuring an impeccable surface finish and consistent geometry across every production cycle.
Intelligent PLC Automation: Powered by an advanced PLC (Siemens/Mitsubishi/Delta) with touch screen interface, allowing operators to easily program batch counts, tile lengths, and monitor real-time diagnostics for optimal production control.

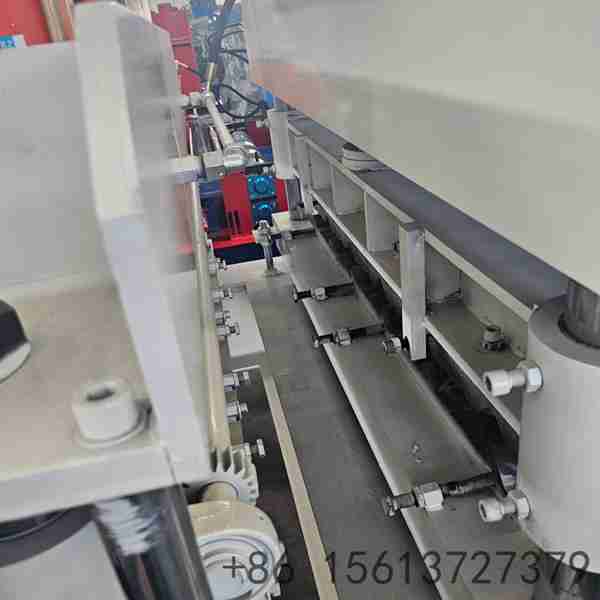

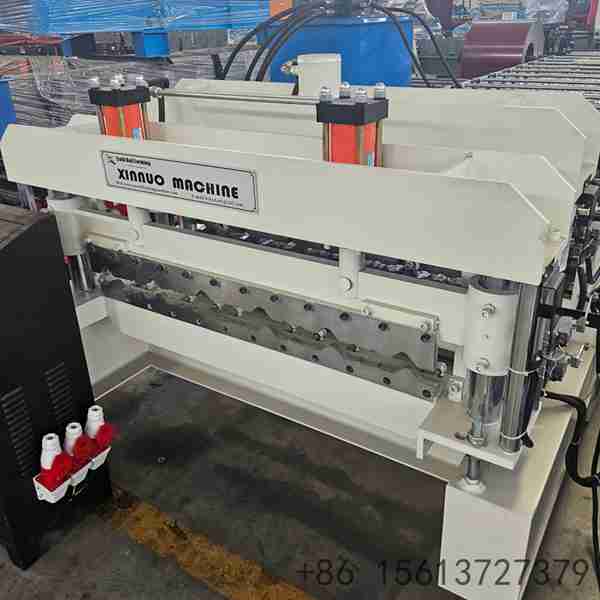

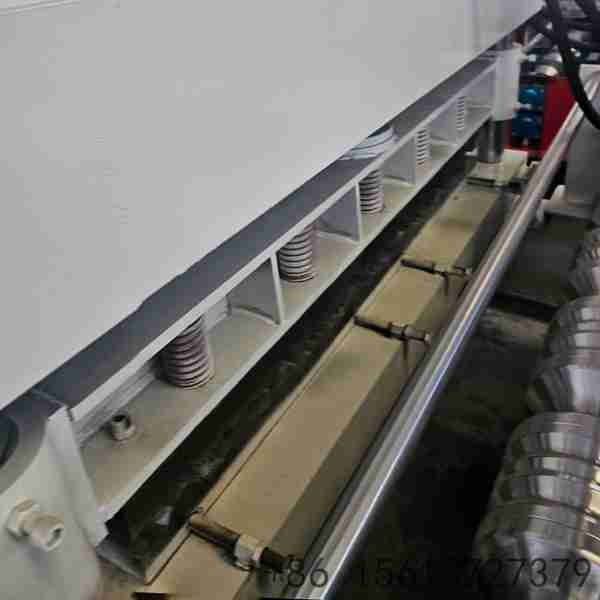

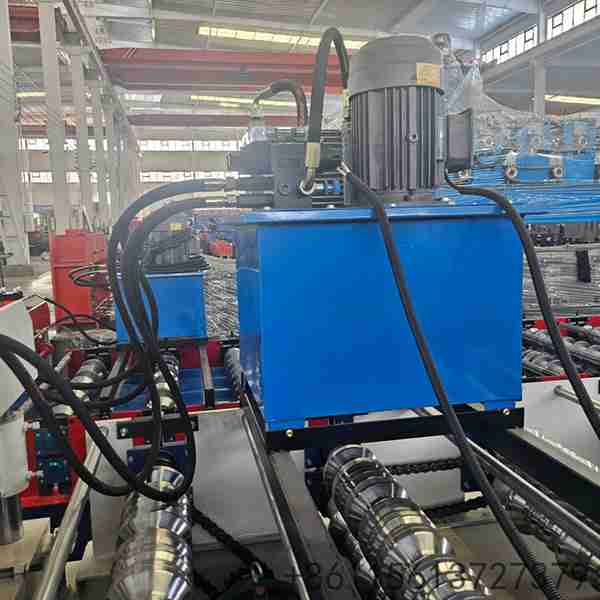

Synchronized Hydraulic Cutting: Features a hydraulic cutting system with Cr12 mold steel blades (HRC 58-62) that tracks line speed to execute exact cuts with strict ±1-2mm tolerance and clean, burr-free edges for immediate installation.

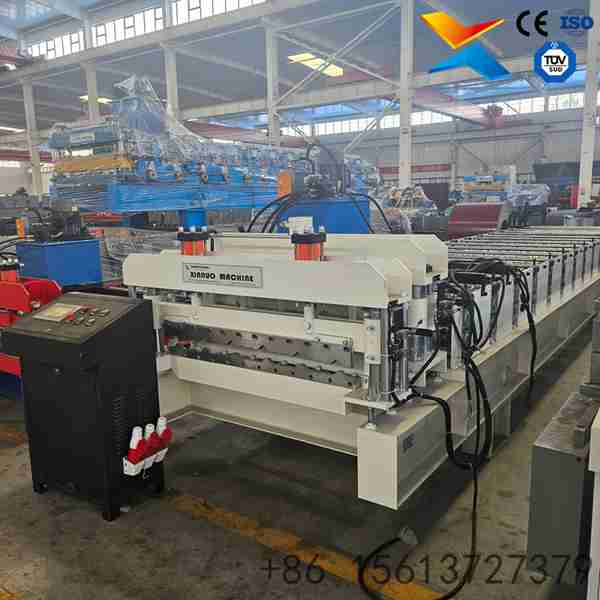

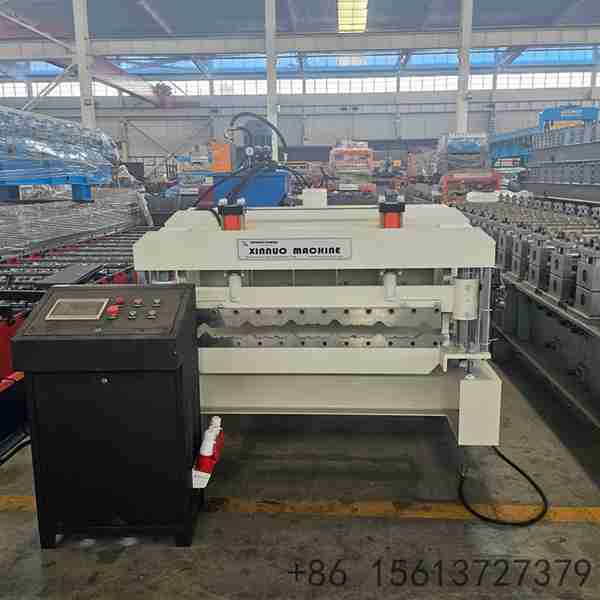

The Antique Metal Roof Tile Making Machine is a high-performance production solution designed for manufacturers of premium metal roofing materials. This equipment transforms color-coated, galvanized, or Aluzinc steel coils into finished antique tiles through a highly synchronized process of decoiling, precision forming, and automated cutting.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color Coated Steel / Galvanized Steel / Aluzinc Coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Antique Metal Roof Tile |
| 6 | Forming Speed | 8 - 12 m/min (adjustable via VFD) |
| 7 | Number of Forming Stations | 11 - 17 rows |
| 8 | Main Motor Power | 3 - 7.5 kW |
| 9 | Hydraulic Station Power | 3 - 4 kW |
| 10 | Roller Material | 45# Forged Steel with Hard Chrome Plating (0.05mm) |
| 11 | Shaft Material | 45# Steel, Diameter 70-76mm, Quenched & Polished |
| 12 | Cutting Blade Material | Cr12 Mold Steel with Quenching Treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic Post-Cutting, Automatic Stop-and-Cut |
| 14 | Control System | PLC with Touch Screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phases (customizable) |
| 16 | Machine Dimensions | Approx. 6.0m - 8.0m × 1.3m - 1.5m × 1.3m - 1.5m |
| 17 | Machine Weight | Approx. 3 - 6 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Decoiler Capacity | Up to 5 Tons (Manual or Hydraulic) |
| 20 | Drive Mode | Chain Transmission |
| 21 | Warranty | 12-24 Months Free Warranty + Lifetime Technical Support |
