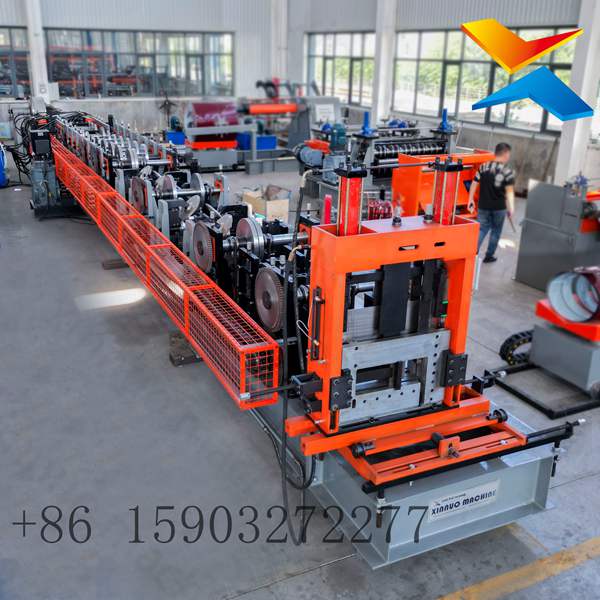

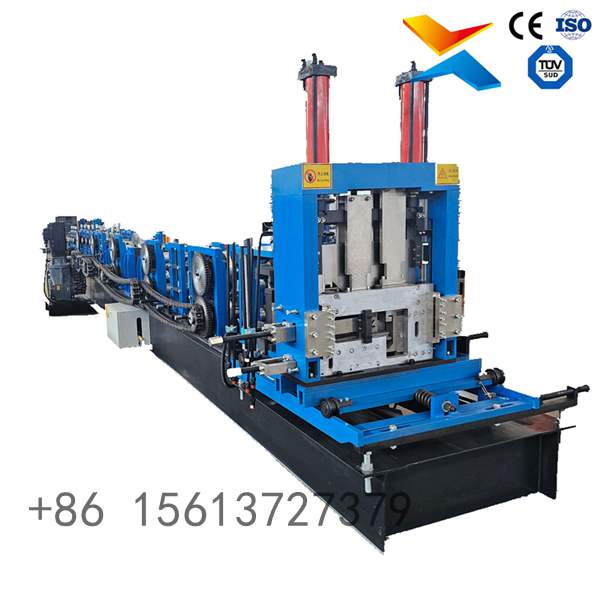

CZ purlin roll forming machine Quick-Change
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Model: c purlin
6.2 years for machinery warranty
7.WhatsApp：+8615903272277
Product Description
Product Description
U Purlin Roll Forming Machine – After-sales & Advantages
After-sales Services
- Warranty: 24-month free warranty, lifelong technical support.
- Delivery Time: 25–45 days after receiving deposit.
- Installation & Training: Free on-site training for installation, operation and maintenance if you visit our factory.
Our Key Advantage
High-precision CZ purlin machines guaranteed by our 13-meter gantry milling machine.
This large precision equipment ensures:
- One-time processing of machine base, no assembly errors
- Higher forming accuracy and straightness
- More stable performance and longer service life
- Better quality for mass production
With more than 30 years of manufacturing experience, we provide customers with reliable, high-efficiency and long-lasting cold roll forming machines.
Product Description
| No. | Main Parameter of c purlin machine | |
| 1 | Suitable to process | Galvanized steel strips |

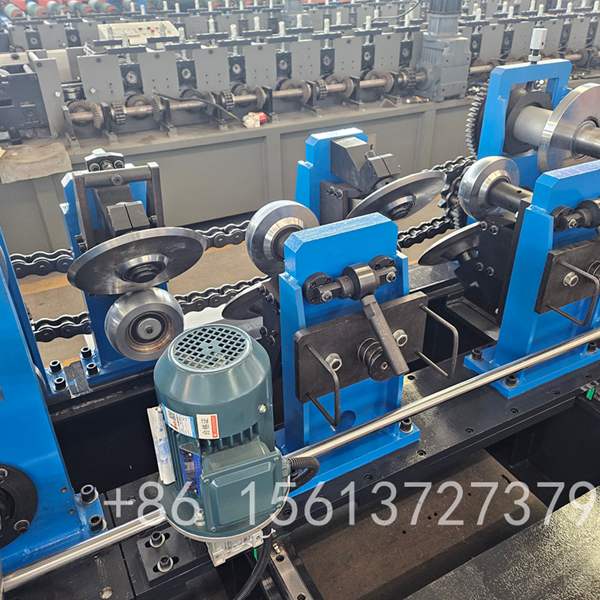

| 2 | Rollers | 16rollers+leveling axis 4rollers |
| 3 | Dimensions | 10500*1500*1600mm |
| 4 | Main Motor size | 11Kw*2 |
| 5 | Hydraulic pump | 5.5Kw |
| 6 | Thickness of the plate | 1.5-3.0mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12Mov,Quenched treatment 58℃-60℃ |
| 9 | Diameter of the roller | Φ85mm |
| 10 | Weight | About 8.5T |
| 11 | Main structure of the machine | 450H steel |
| 12 | Processing precision | Within 1.0mm |
| 13 | Side panel of machine | 20mm |
| 14 | Chain Wheel and Cycle Chain | 2Inch |
| 15 | Voltage | 380V 50HZ 3Phase |
| 16 | Control system | PLC control (Delta) |

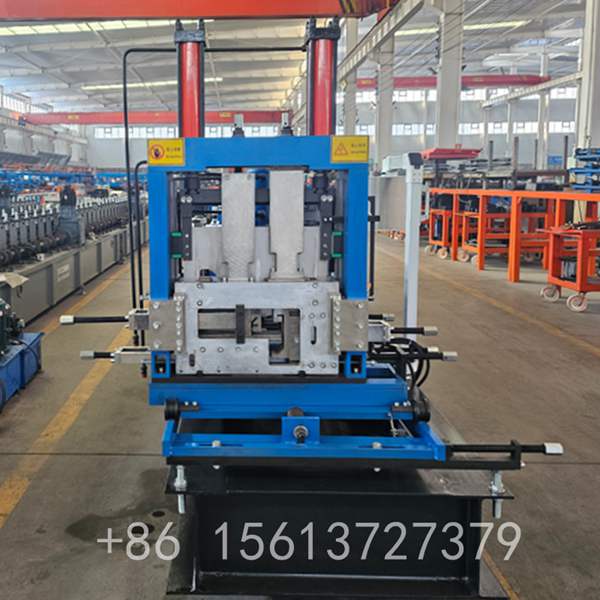

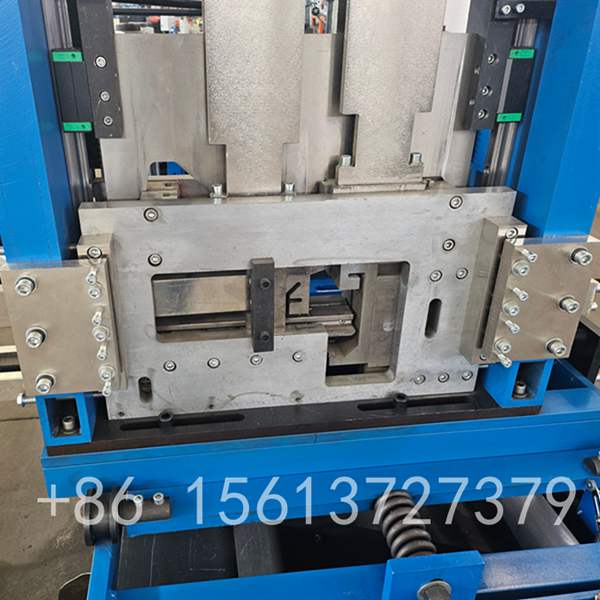

| 17 | Cut off the way | Hydraulic torsion shear |
| 18 | Drive mode | Motor driver |
| 19 | Hydraulic station pump | Gear pump |
| 20 | Touch screen | Delta |
| 21 | Rolling materials | Gcr15 |
| 22 | Length Tolerance | ±2mm |
