Steel Expanded Mesh Making Machine
Zero-Waste Process: Slits and stretches solid metal sheets into mesh, saving raw material costs.
Heavy-Duty Frame: Built with a cast steel base for stable, vibration-free operation.
Long-Lasting Molds: Uses hardened alloy steel cutter molds for clean cuts and long service life.
Easy PLC Control: Smart touch screen allows one worker to easily operate the whole machine.
Wide Application: Processes various metals (steel, aluminum, copper) and thicknesses by simply changing molds.
Zero-Waste Expanding Technology: Utilizes a pressured slitting and stretching process to transform solid steel sheets and coils into expanded mesh, ensuring no material is wasted during production and significantly reducing manufacturing costs.

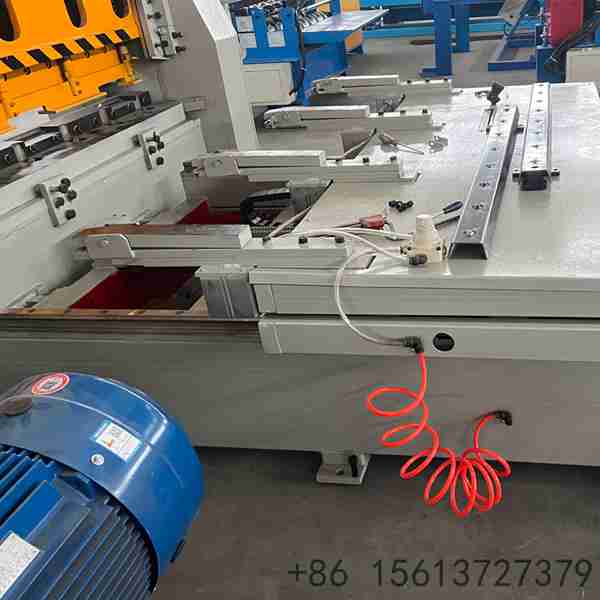

Heavy-Duty Machine Construction: Built on a reinforced cast steel base and unit structure, specifically designed to absorb the immense forces of the expanding process, ensuring shock-resistance and smooth, stable operation.

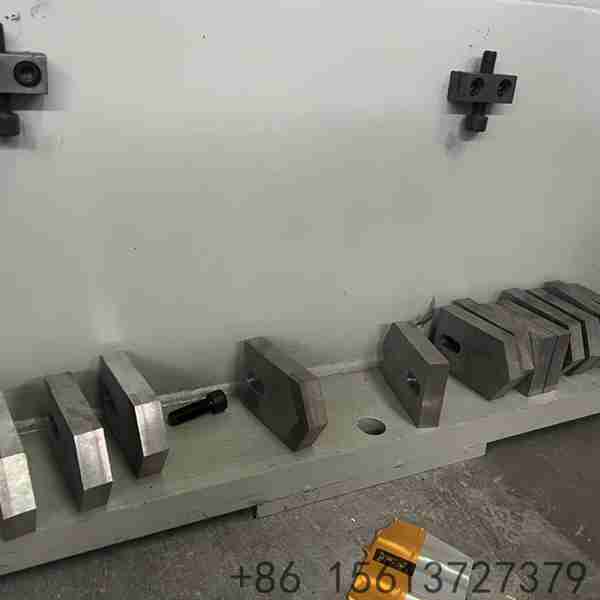

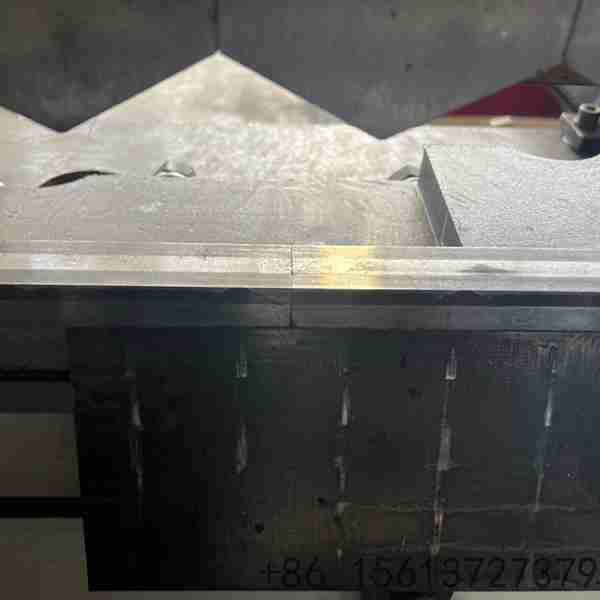

Precision Alloy Cutter Molds: Features cutter molds made of Cr12#1 or YG-8 hardened tool steel, guaranteeing clean slits, long service life (up to one year), and the ability to expand various mesh patterns by changing molds.
Intelligent PLC Automation: Powered by an advanced PLC and text screen control system, enabling one worker to easily operate the machine, set parameters, and monitor real-time system diagnostics for efficient production.

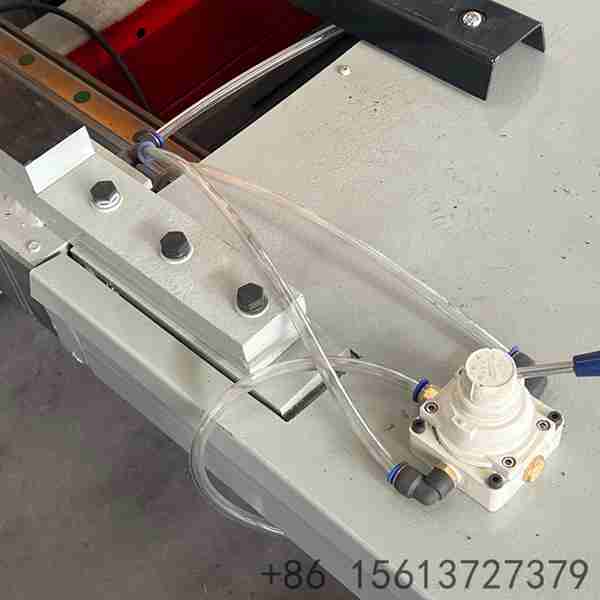

Fast & Safe Cutting System: Equipped with a pneumatic clutch brake and step motor for fast, accurate stopping, along with steel metal covers for rotating wheels to ensure safe operation during high-speed production.

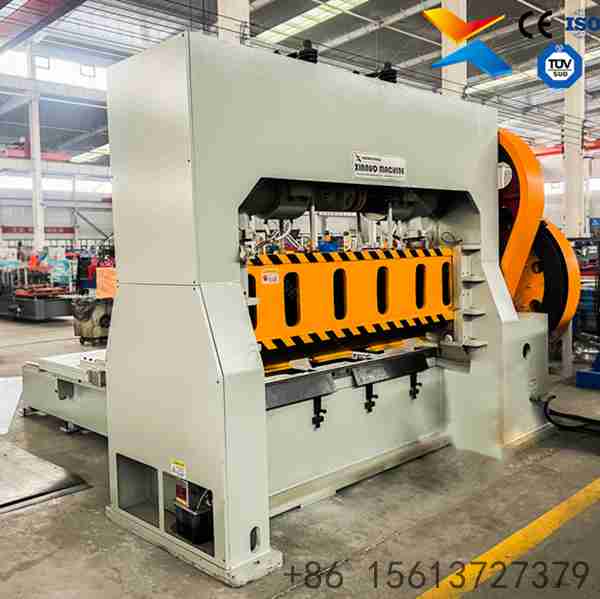

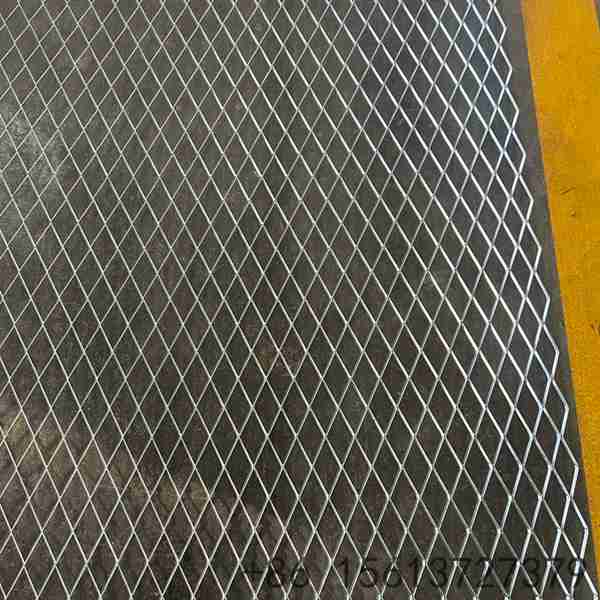

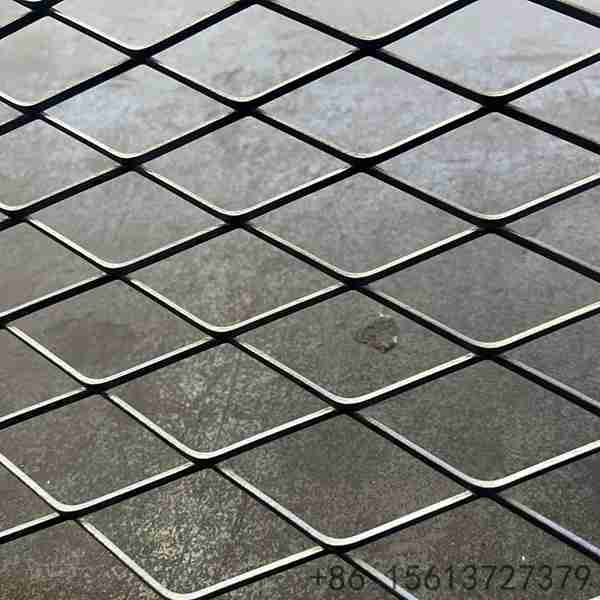

The Steel Expanded Mesh Making Machine is a specialized production solution tailored for manufacturers of premium metal mesh materials. Expanded metal mesh is produced by an expanding machine that uses a pressured slitting and stretching process to transform solid metal sheets and coils into an open mesh pattern, most commonly a diamond shape. This equipment can process a wide variety of metals, including low carbon steel plates, stainless steel plates, aluminum plates, copper plates, and titanium nets, with thicknesses ranging from 0.1mm to 8mm.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Low carbon steel / Stainless steel / Aluminum / Copper / Titanium |
| 2 | Material Thickness Range | 0.1 - 8 mm |
| 3 | Material Width Range | 100 - 3000 mm (customizable based on model) |
| 4 | Mesh Pattern | Diamond (Standard), Hexagonal, Round (Customizable) |
| 5 | Forming Speed | 20 - 200 pcs/min (adjustable via frequency converter) |
| 6 | Number of Roller Stations | Customized based on mesh size and material thickness |
| 7 | Main Motor Power | 2.2 - 22 kW (varies by machine model) |
| 8 | Hydraulic Station Power | 3 - 11 kW |
| 9 | Cutter Mold Material | Cr12#1 / YG-8 hardened tool steel |
| 10 | Shaft Material | 45# / 40Cr steel, tempered & polished |
| 11 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |

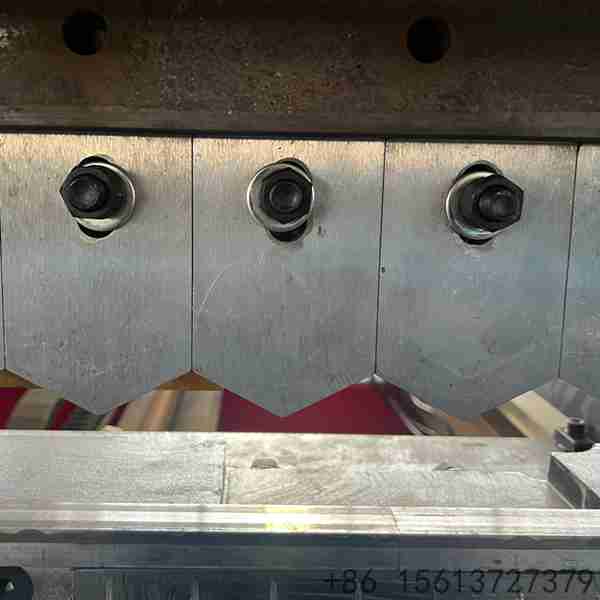

| 12 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 13 | Control System | PLC with touch screen / Text screen control |
| 14 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 15 | Machine Dimensions | Varies by model (e.g., 1090×710×1450mm to 5500×1750×3300mm) |
| 16 | Machine Weight | 0.95T - 20T (varies by machine model) |
| 17 | Length Tolerance | ±1 - 2 mm |
| 18 | Uncoiler Capacity | Up to 10 tons (manual or hydraulic) |
| 19 | Driving Mode | Chain transmission / CNC stepper motor feed |
| 20 | Warranty | 12-24 months free warranty + lifelong technical support |
