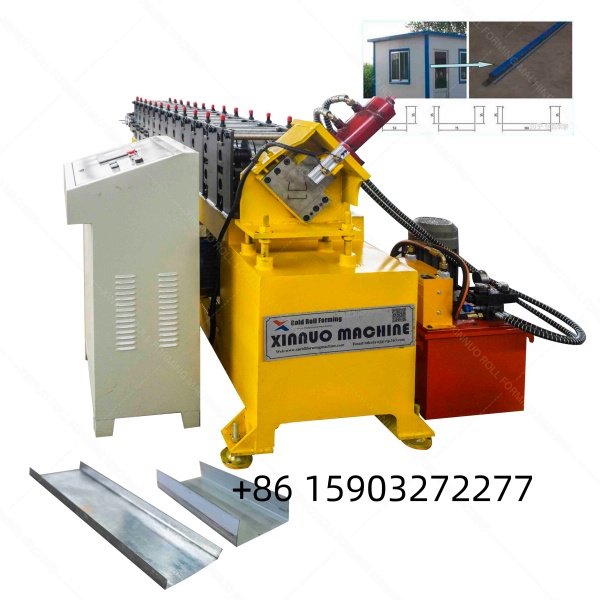

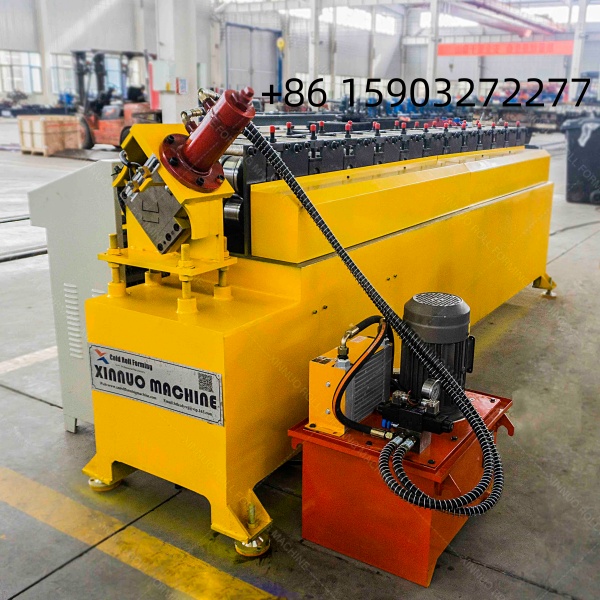

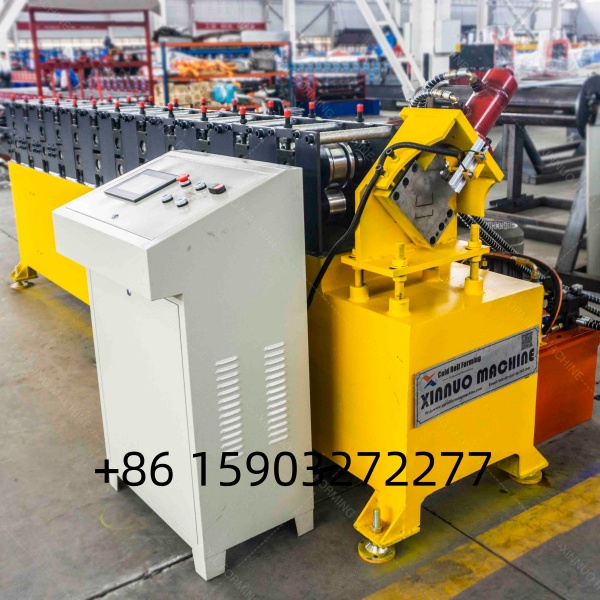

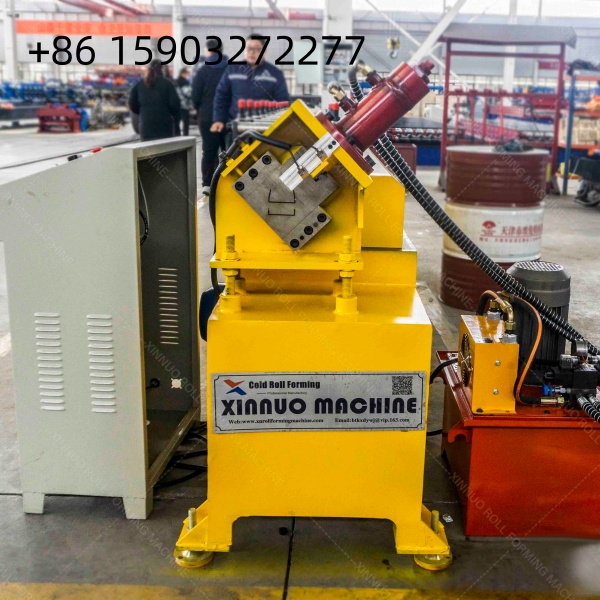

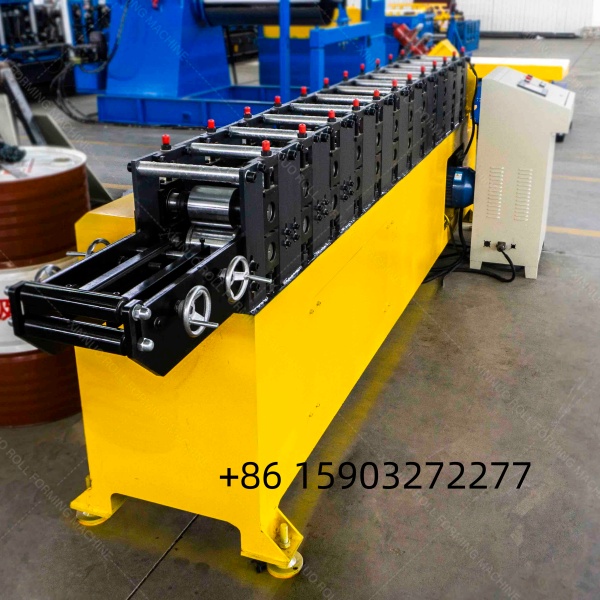

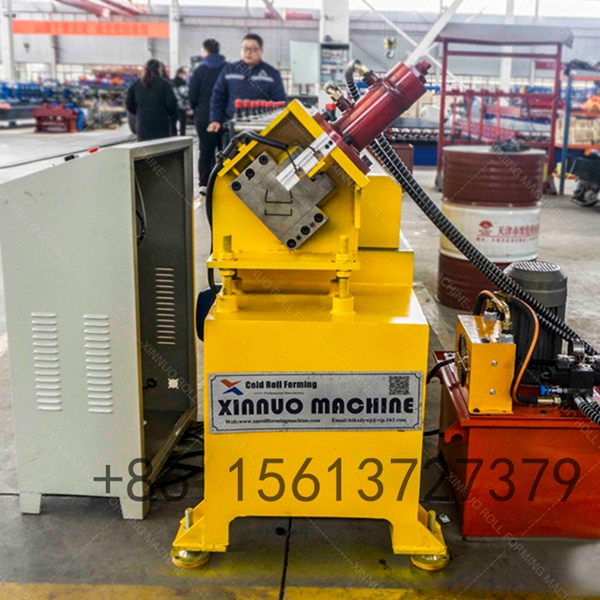

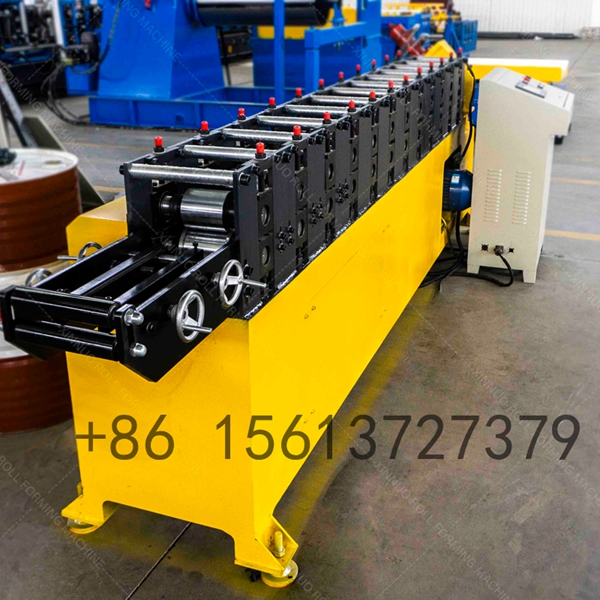

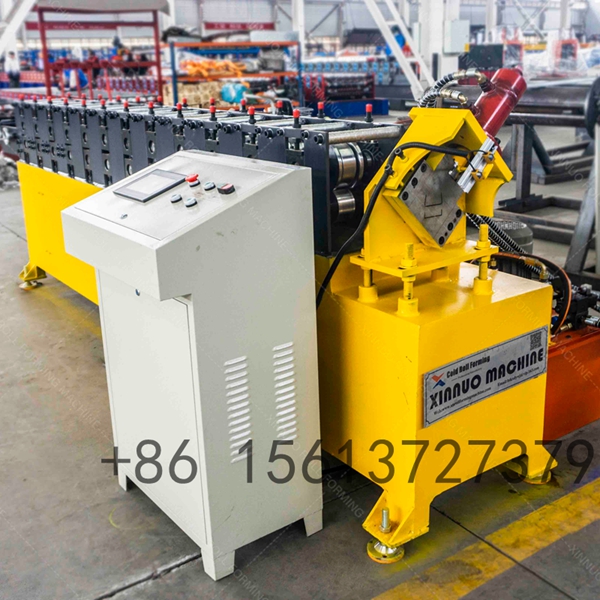

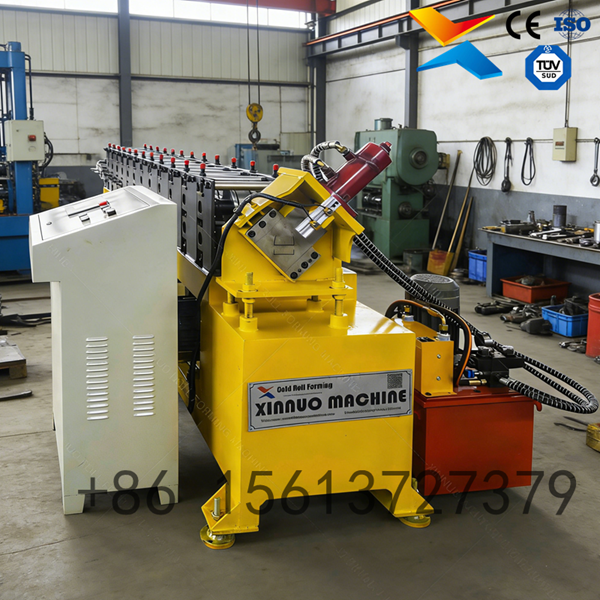

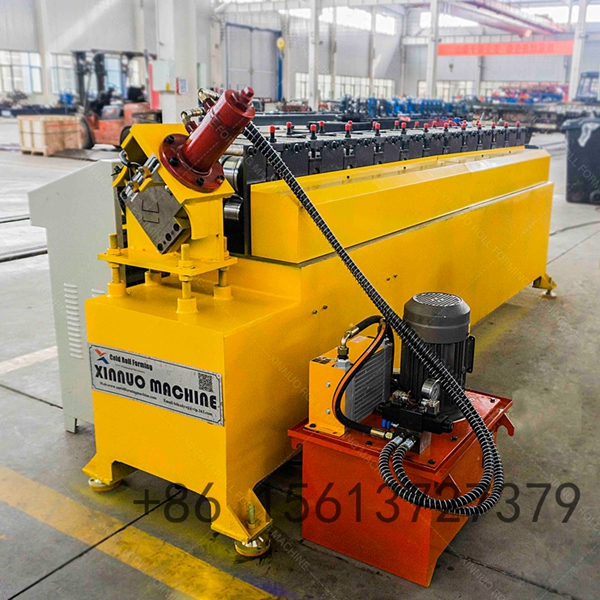

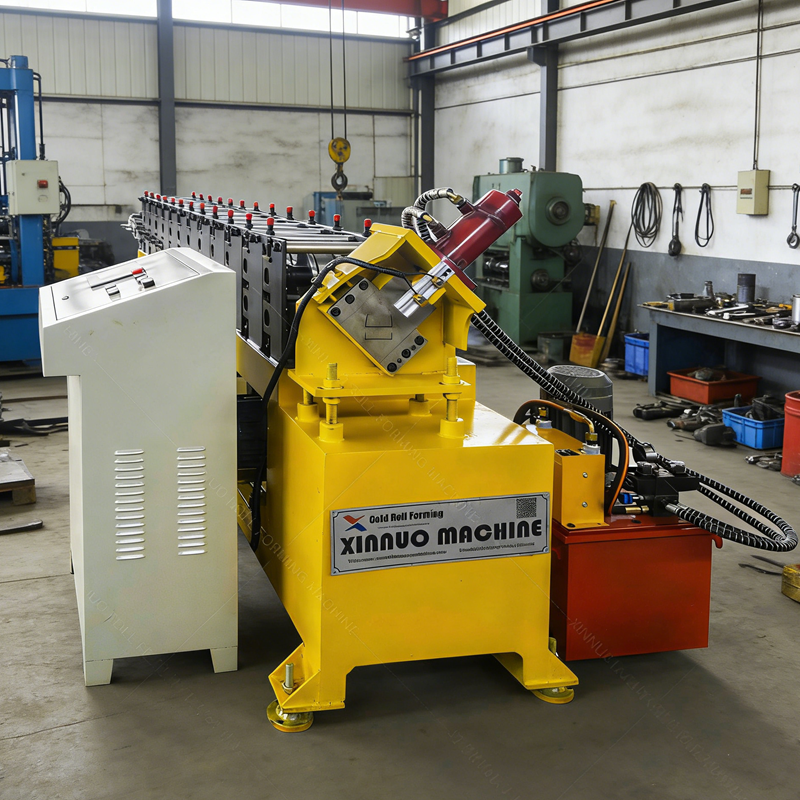

Light Steel Keel CU Metal Roll Forming Machine
Product Attributes :
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Thickness: 0.5-1.5mm
6.2 years for machinery warranty
7.WhatsApp：+8615903272277
| Name | Light Steel Keel Roll Forming Machine |
| Roller Station | 12rows Plus Leveling Device |
| Main Frame | Square Steel Frame |
| Shaft Diameter | 50mm |
| Shaft Material(Hard) | High Grade 45# Steel, Heated and Quenched, Cylindr |
| Motor Power | 3kw or Customer's Need |
| Size | 5.6*0.8*1.5meters |
| Forming Speed | 15-25m/Min |
| Drive | Hydraulic |
| Origin | China |

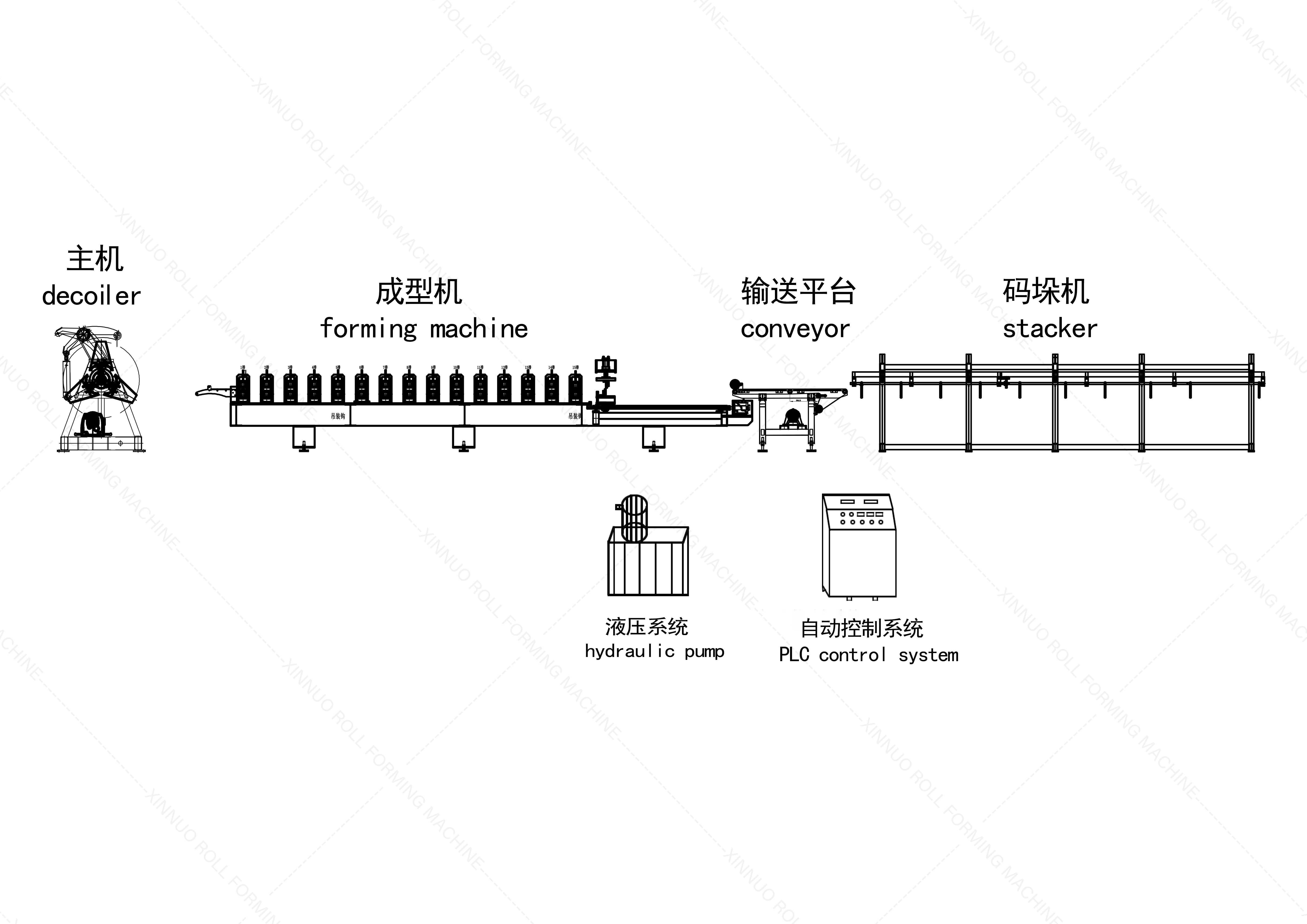

Our Light Steel Keel Roll Forming Machine is a high-efficiency, automatic production equipment specially designed for manufacturing light steel keels, which are widely used in modern building decoration, interior partitioning, ceiling systems and prefabricated buildings. With advanced roll forming technology and stable performance, this machine realizes integrated production from raw material feeding, roll forming, punching, cutting to finished product output, greatly improving production efficiency and product quality while reducing labor costs.
The machine adopts high-quality carbon steel rollers, which are precision machined and heat-treated to ensure wear resistance and long service life. The forming process is controlled by PLC touch screen, with simple operation and high automation—only 1-2 operators are needed to complete the whole production process. It supports customization of keel specifications (such as U-shaped, C-shaped, T-shaped, L-shaped) according to customer needs, with adjustable forming speed (0-15m/min) and cutting length (customizable within 1-6m), meeting the diverse requirements of different construction projects.
Key advantages of our Light Steel Keel Roll Forming Machine:
- High Productivity: Integrated automatic production, no manual intervention in the forming and cutting process, which is 3-5 times more efficient than traditional manual processing.
- Stable Quality: Precision roll forming technology ensures uniform keel thickness, smooth surface, accurate size and strong load-bearing capacity, complying with international building material standards.
- Energy-Saving & Environment-Friendly: Low power consumption, no noise pollution, no waste of raw materials, in line with green production concepts.
- Easy Maintenance: The machine structure is reasonable, with detachable rollers and standardized parts, which is convenient for daily maintenance and repair, reducing downtime.
- Wide Application: Suitable for producing light steel keels for residential buildings, commercial buildings, workshops, warehouses, prefabricated houses and other projects, widely recognized in the global construction material market.
