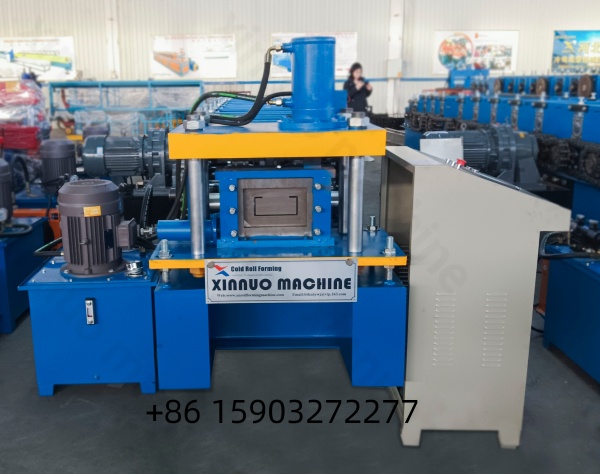

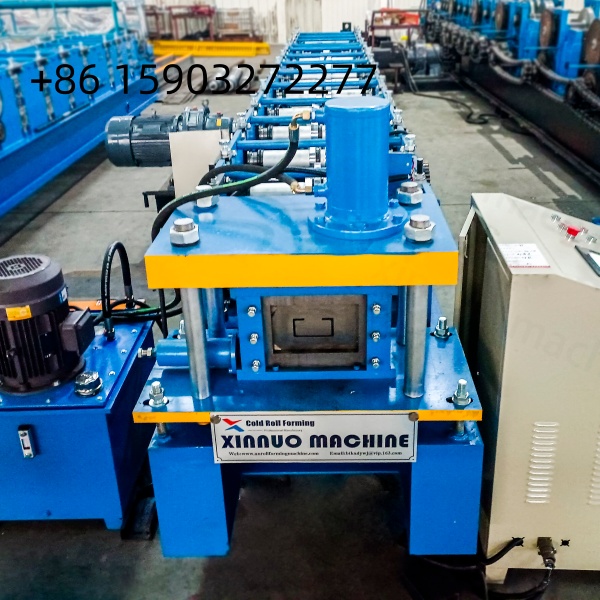

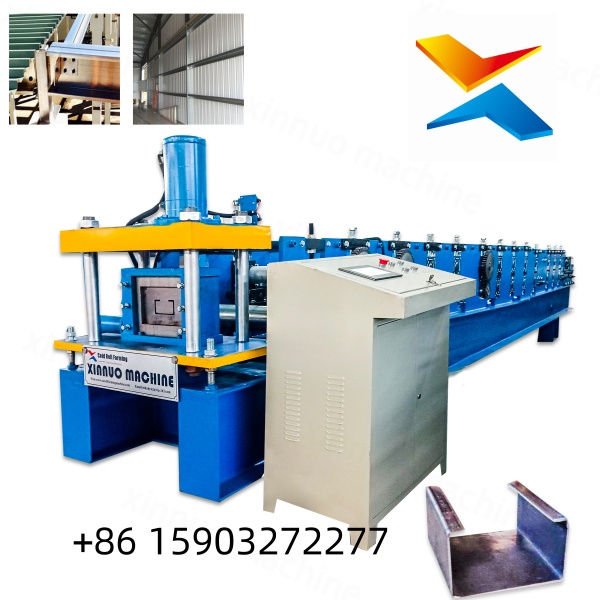

C-shaped purlin roll forming machine

Product Attributes :

1.Voltage: 380V/50Hz (customizable for 220V/60Hz)

2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)

3.Weight：3000-5000kg (depending on configuration)

4.Raw Material：Galvanized steel coil

5.Model: c purlin

6.2 years for machinery warranty

7.WhatsApp：+8615903272277

Product Description

C Purlin Roll Forming Machine – After-sales & Advantages

Warranty: 24-month free warranty, lifelong technical support.
Delivery Time: 25–45 days after receiving deposit.
Installation & Training: Free on-site training for installation, operation and maintenance if you visit our factory.

High-precision CZ purlin machines guaranteed by our 13-meter gantry milling machine.

This large precision equipment ensures:

With more than 30 years of manufacturing experience, we provide customers with reliable, high-efficiency and long-lasting cold roll forming machines.

Product Description

No.	Main Parameter of c purlin machine
1	Suitable to process	Galvanized steel strips

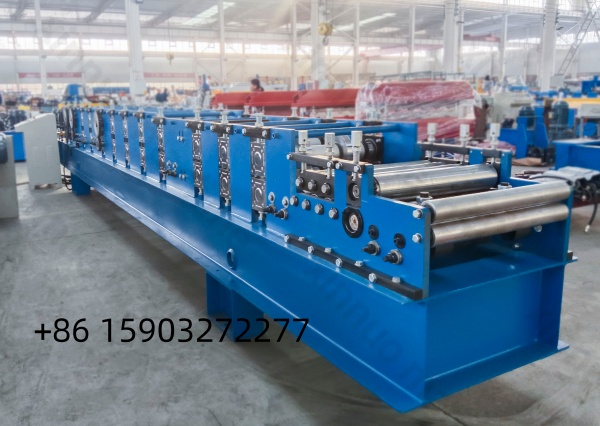

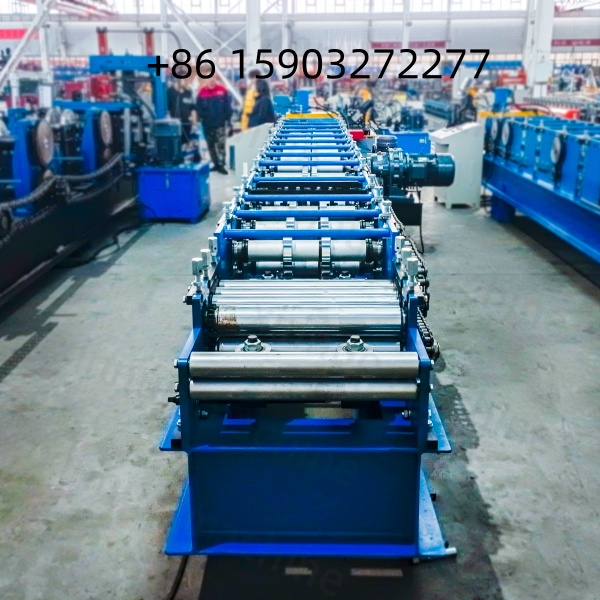

2	Rollers	16rollers+leveling axis 4rollers
3	Dimensions	1050015001600mm
4	Main Motor size	11Kw*2
5	Hydraulic pump	5.5Kw
6	Thickness of the plate	1.5-3.0mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12Mov,Quenched treatment 58℃-60℃
9	Diameter of the roller	Φ85mm
10	Weight	About 8.5T
11	Main structure of the machine	450H steel
12	Processing precision	Within 1.0mm
13	Side panel of machine	20mm
14	Chain Wheel and Cycle Chain	2Inch
15	Voltage	380V 50HZ 3Phase

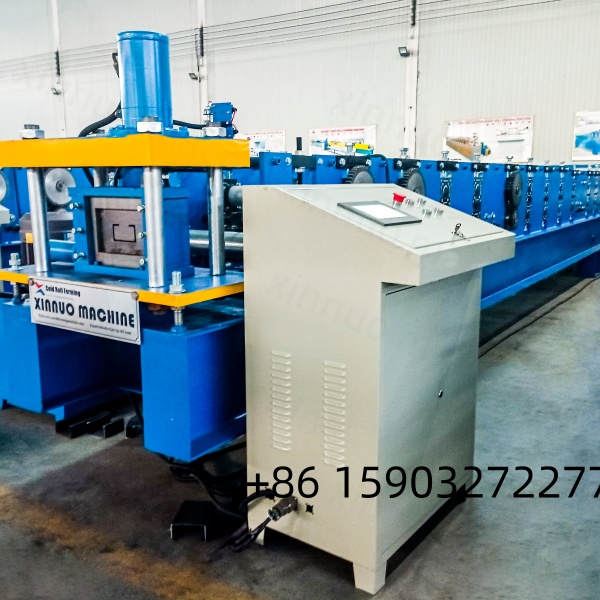

16	Control system	PLC control (Delta)
17	Cut off the way	Hydraulic torsion shear
18	Drive mode	Motor driver
19	Hydraulic station pump	Gear pump
20	Touch screen	Delta
21	Rolling materials	Gcr15
22	Length Tolerance	±2mm
