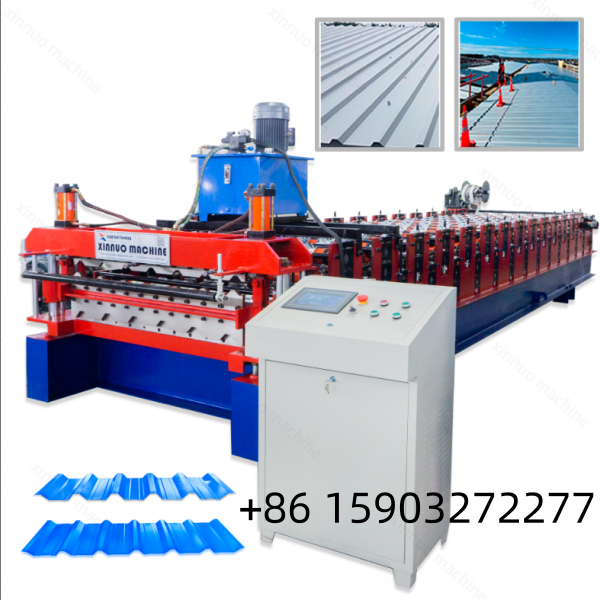

988+1000 Double Layer IBR Roof Panel Forming Machine

Product Attributes :

Application	Production of trapezoidal metal roof sheets
Material Thickness	0.3 – 0.8 mm
Feeding Width	1220 mm
Production Speed	8 – 15 m/min
Note WhatsApp	Custom sizes & profiles available 15903272277

Product Description

High-Speed, High-Volume Production: Engineered for efficient massproduction of roofing corrugated sheets, siding panels, and floor decking.

Fast, Precise Roll-Forming: Delivers durable, uniform corrugated panelswith customizable profile settings.

Low Maintenance: Ensures consistent quality and reduces operational costs with minimal upkeep.

Easy to Operate: Designed for straightforward use, making it accessible for a wide range of users.

High Quality, Low Price & Durable Performance

Fully Automatic & Intelligent Control

Reliable After-Sales Guarantee

Flexible Adaptation to Diverse Needs

Scratch-Free, Low-Noise & Energy-Saving Green Production

Stable & Reliable Hydraulic Drive System

750 mm after forming
Production Speed	8 – 15 m/min, stable operation with minimal error
Roller Stations	14 – 18 stations depending on profile design
Roller Material	High-quality GCr15 steel with heat treatment & hard chrome plating
Shaft Diameter	75 mm solid steel shaft, precision machined
Cutting System	Hydraulic cutting with high-precision blades for smooth edges
Control System	PLC automatic control with touch screen (Siemens/Delta)
Main Motor Power	5.5 kW (customizable for higher production speed)
Hydraulic Station Power	4 kW with reliable pump for long-term performance
Dimension (L×W×H)	About 8.5 m × 1.5 m × 1.5 m
Weight	About 6 tons
