High Load Capacity: Engineered to safely handle heavy steel coils up to 7 tons, making it ideal for large-scale industrial manufacturing and heavy-duty production environments.
Integrated Precision Leveling System: Features a multi-roller leveling unit that automatically straightens the sheet metal, eliminating curvature and ensuring highly accurate feeding into the roll forming machine.

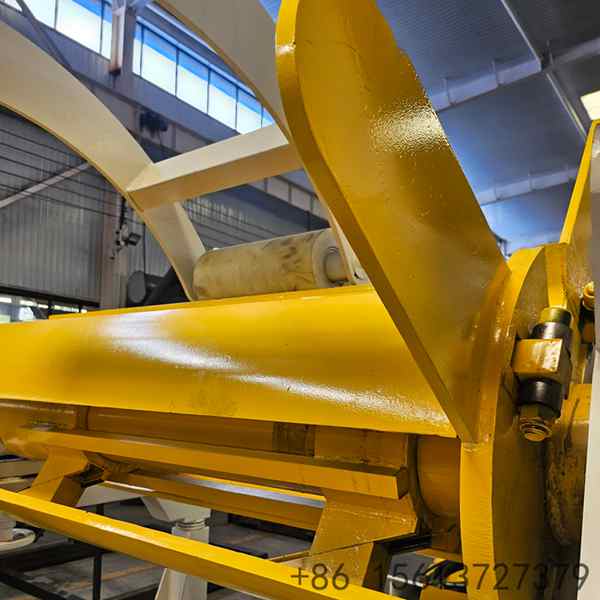

Effortless & Safe Loading: Equipped with a hydraulic support arm and lifting mechanism that allows operators to load and unload heavy coils quickly, safely, and with minimal physical effort.

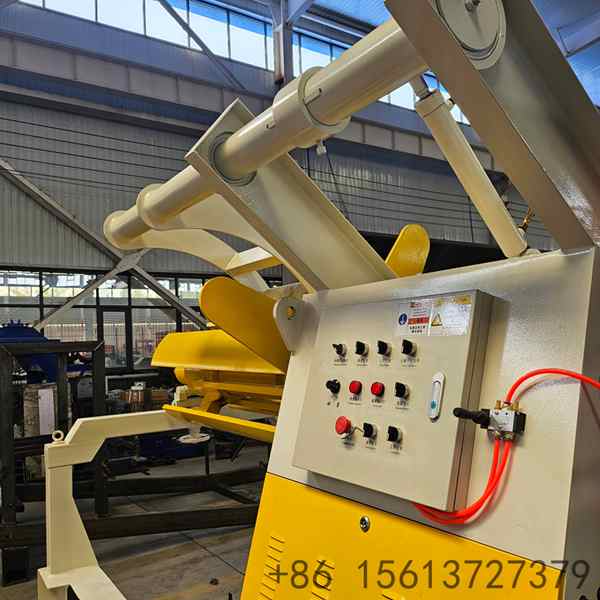

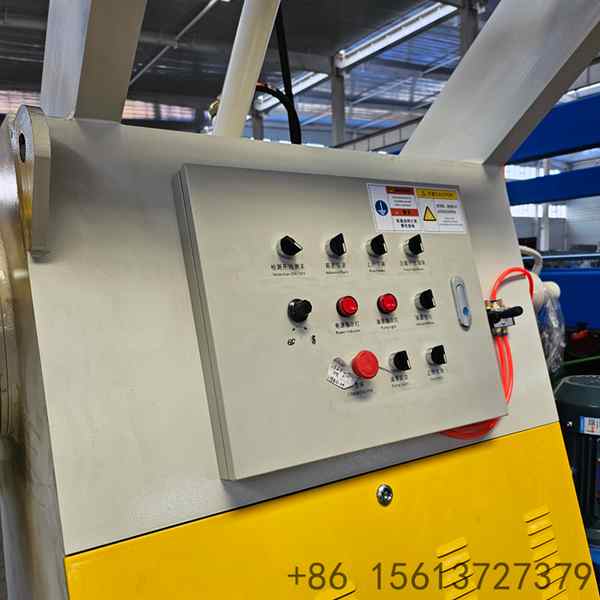

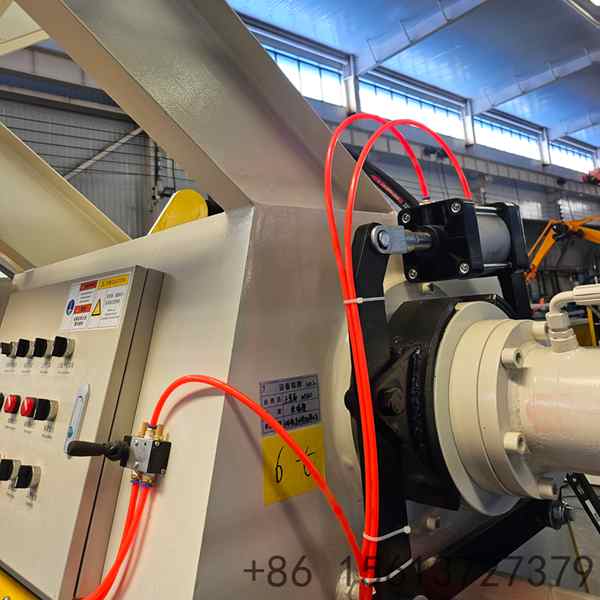

Advanced Electrical Control: Operated via an independent control panel with intuitive forward, reverse, and emergency stop functions, providing operators with maximum safety and precise control.

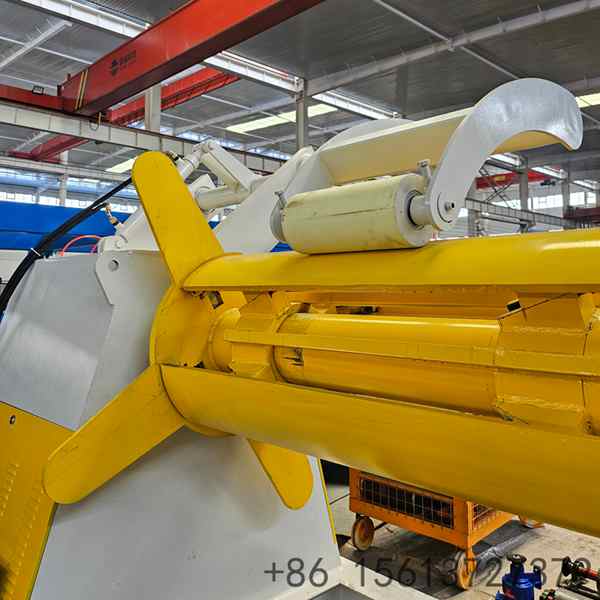

Robust & Durable Construction: Built with a heavily welded and heat-treated steel frame that absorbs vibrations, prevents deformation under heavy loads, and guarantees an extended service life.

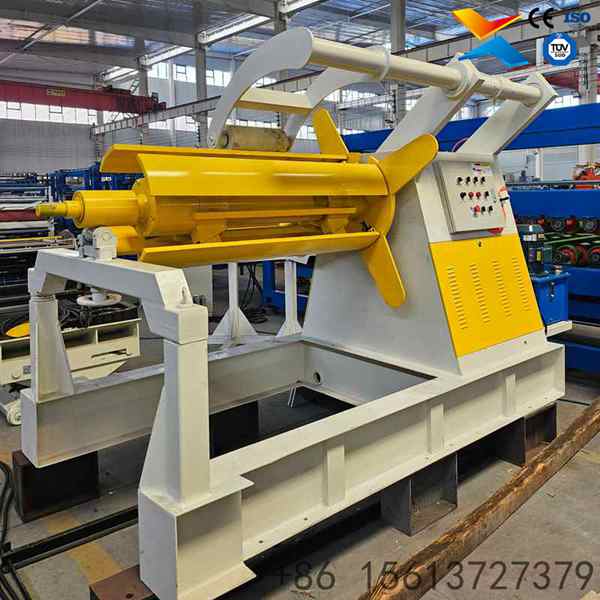

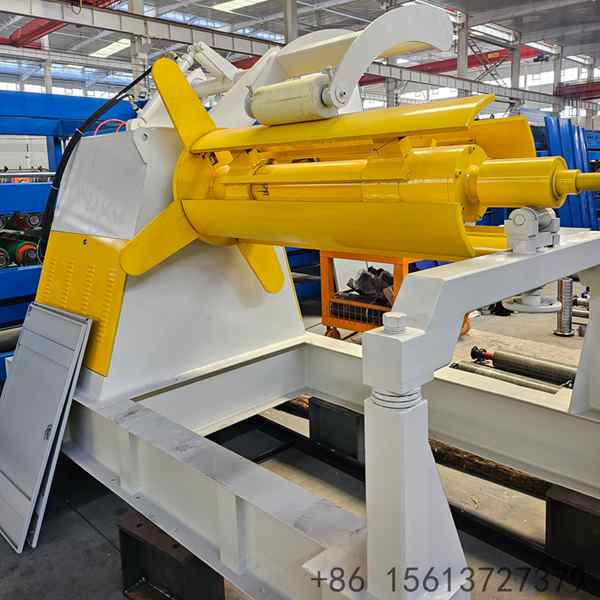

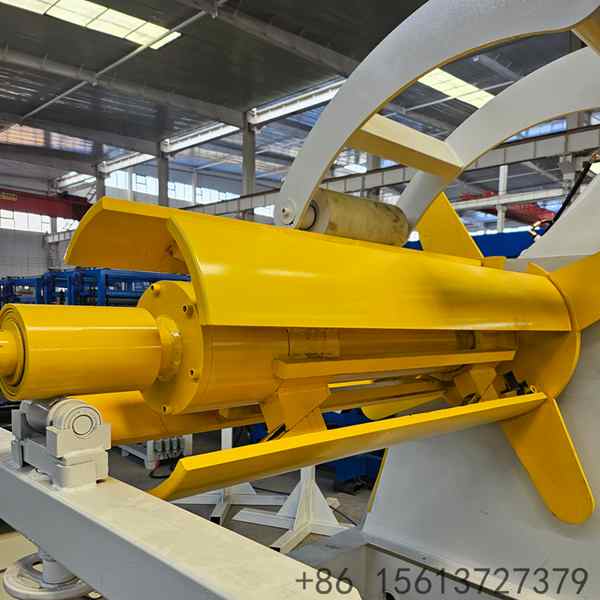

The 7T Industrial Metal Sheet Decoiler is a critical piece of auxiliary equipment designed to seamlessly integrate with roll forming lines. Its primary function is to store, support, and feed heavy steel coils while ensuring the material remains perfectly flat before entering the forming station. The machine's standout advantage is its integrated precision leveling system, which uses multiple forged steel rollers to remove internal stresses and curvature from the coil. This results in higher forming accuracy, better product quality, and reduced wear on the downstream roll forming machine.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Max Loading Capacity | 7 Tons |
| 2 | Applicable Sheet Width | Up to 1500 mm (customizable based on needs) |
| 3 | Coil Inner Diameter | Φ450 - 530 mm |
| 4 | Coil Outer Diameter | Up to Φ1200 mm |
| 5 | Uncoiling Motor Power | 3 kW |
| 6 | Leveling Motor Power | 2.2 kW |
| 7 | Leveling System Configuration | 3 upper rollers + 4 lower rollers |
| 8 | Loading Mode | Hydraulic support arm / Manual option |
| 9 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 10 | Overall Dimensions | 2500 × 1800 × 1600 mm |
| 11 | Total Weight | Approx. 2.5 Tons |
| 12 | Control System | Independent panel (Start/Stop/Forward/Reverse/E-Stop) |
| 13 | Uncoiling Speed | 0-20 m/min (fully adjustable) |
| 14 | Roller Material | Forged 45# steel with high-frequency quenching |
| 15 | Safety Feature | Mechanical safety brake to prevent rollback |
